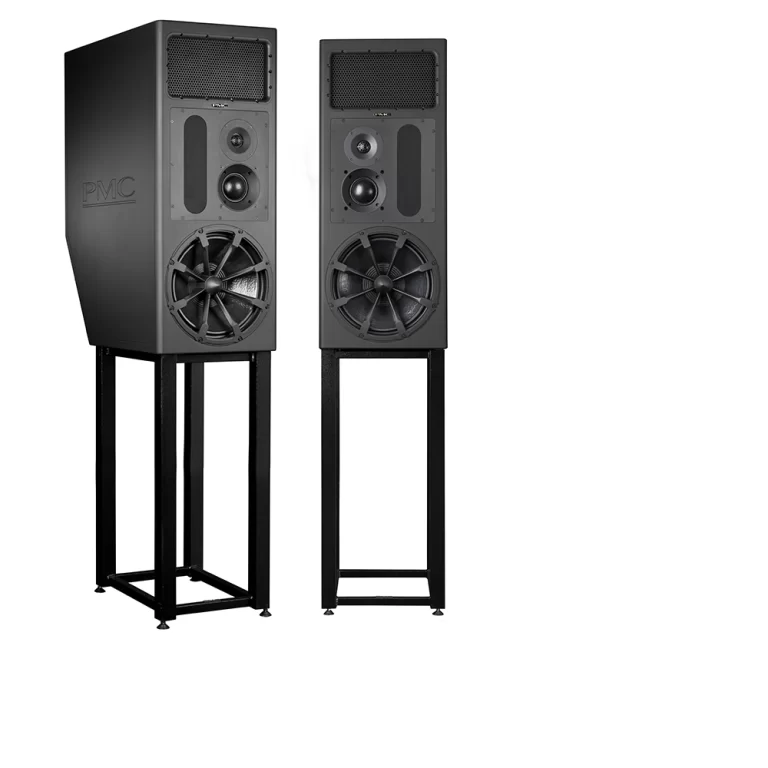

BB6-A aktyvūs studijos monitoriai
Building on the unique heritage and 25-year success of PMC’s BB5, the BB6 offers the same wide dynamic range and frequency response, 15-inch Radial™ bass driver, unwavering tonal consistency at all output levels and high maximum SPL (up to 128dB) of its predecessor, but with the additional power and flexibility of PMC’s proprietary Class-D amplification and DSP control. Flat down to a truly profound 17Hz and extending to beyond the limits of human hearing at 25kHz, the BB6-A may be used in larger recording, mixing, mastering or outside broadcast applications, and is equally at home in a tower configuration or mounted in soffits — although soffit-mounting is not essential, as the ATL™ bass response is sufficient without the LF gain achieved by soffit-mounting.
- Type: 3-way ATL™ active reference monitor
- Frequency response: 17Hz-25kHz
- Power per channel: 3225W (HF 275W, MF 550W, LF 2400W)
- Effective ATL™ length: 4 metres
- Maximum SPL: 128dB
Techninė specifikacija
Studio black
380Hz & 3.8kHz
H 1040mm (40.9″) x W 432mm (17″) x D 790mm (31.1″)
LF – PMC 380mm (15-inch) Radial driver; MF – PMC hand built 75mm soft-dome driver; HF – PMC 34mm soft-dome tweeter with acoustic radiator
4m (13ft)
17Hz – 25kHz
Input Impedance 20k Bal
AES3, 24-bit, 192kHz
Adjustable +4 to +20dBu
73kg (161lbs) each
LF – 1 x 2400Wrms
MF – 1 x 550Wrms; HF – 1 x 275Wrms
