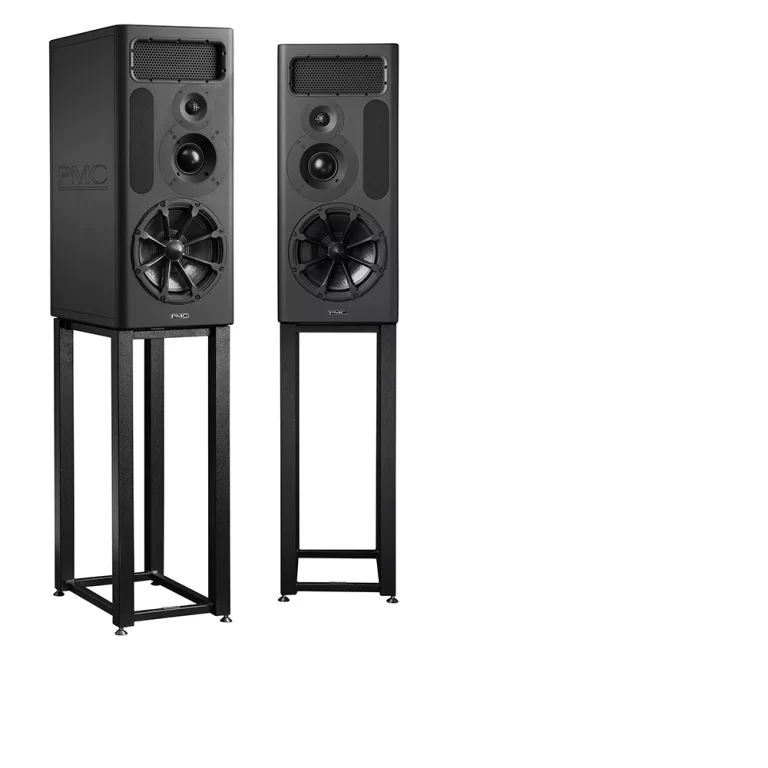

MB3-A aktyvūs studijos monitoriai

65492 €


Whether mounted in soffits or on stands, the MB3, with its distinctive 12-inch Radial™ bass driver, is ideal for medium-sized recording, mixing, mastering or outside broadcast facilities, or as rear surround speakers in larger multi-channel recording studios, film soundstages, or post-production houses. It produces an extremely smooth frequency response extending from 20Hz to 25kHz thanks to its ATL™ technology, and is also capable of producing high SPLs, to a maximum of 126dB, but without the distortion and loss of definition that are frequently associated with a device of its size, and without becoming fatiguing when used for extended periods.

  • Type: 3-way ATL™ active reference monitor
  •  Frequency response: 20Hz-25kHz
  •  Power per channel: 3225W (HF 275W, MF 550W, LF 2400W)
  •  Effective ATL™ length:  3 metres
  •  Maximum SPL: 126dB

https://pmc-speakers.com/studio/active/mb3/

Techninė specifikacija

Available Finishes

Studio black


Crossover Frequency

380Hz & 3.8kHz


Dimensions

H 870mm (34.2″) x W 380mm (15″) x D 535mm (21″)


Drive Units

LF – PMC 310mm (12-inch) Radial driver; MF – PMC hand built 75mm soft-dome driver; HF – PMC 34mm soft-dome tweeter with acoustic radiator


Effective ATL™ Length:

3m (10ft)


Frequency Response

20Hz – 25kHz


Impedance

Input Impedance 20k Bal


Input Connectors

AES3, 24-bit, 192kHz


Sensitivity

Adjustable +4 to +20dBu


Weight

49kg (108 lbs) each


Amplifier Power per

LF – 1 x 2400Wrms


Channel

MF – 1 x 550Wrms; HF – 1 x 275Wrms
