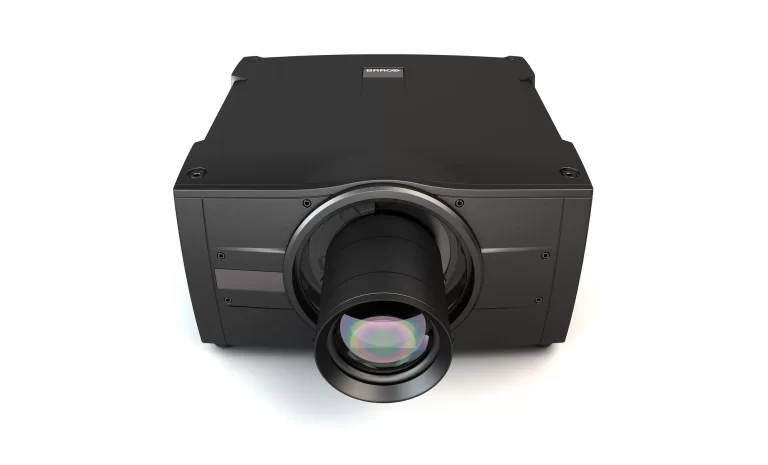

Bragi Cinemascope projektorius

Techninė specifikacija

Bragi takes its name from an historical ninth-century poet. His poems were so outstandingly artful and moving that subsequent generations imagined that, upon his death, Odin had appointed him the court poet of Valhalla.

Bragi, being Balder’s brother and inherits the same design philosophy, optical core and lenses.

Professional grade optics

By basing Bragi Cinemascope's optical engine on its bigger brother Balder Cinemascope's architecture, incorporating custom designed aspherical glass elements and enhanced low dispersion glass lenses, image quality is in a class of its own. Topping that, Bragi’s chassis and core are built from aluminium and magnesium, which offer exceptional robustness, resulting in the best picture quality ever shown at this level.

State of the art electronics

Thanks to our unique single step processing technology (SSPTM), Pulse electronics are designed to process 4K UHD, HDMI^TM 2.0a, HDCP 2.2 and HDR10 signals with extremely low latency. Bragi CinemaScope uses the very latest 0.9" DMD DLP chipset, to display flawless 5K UHD (5,120 × 2,160 px), 2.37:1 aspect ratio images on screen.

CinemaScope

Our unique aspect ratio detection system, automatically crops and scales content to fit the appropriate screen area, ranging from 1.78:1 to 2.39:1. Manual cropping is also available for custom configurations such as cinemascope subtitle support, where only the top black bar (letterboxing) is removed, preserving the subtitles at the foot of the image.

Colors

Bragi also includes a motorized DCI/P3 filter for improved HDR color accuracy. Additionally, Barco’s RealColor processing enables simple and accurate calibration to your desired color gamut or white point.

Specifications

Projector type: Single chip DLP

Light source lifetime: Up to 50,000 hours *
Brightness mode dependent

CLO (constant light output): Yes

Optical dowser: Yes

Technology: 0.9″ DMD™

Integrated web server: Yes

Resolution: 5,120 x 2,160 (5K UHD)

Diagnostics: via Prospector web interface

Aspect ratio: 2.37:1 (CinemaScope)

Light source: Solid State RGB LED

Light output: Up to 2,200 ANSI Lumens

Contrast ratio: 1,800:1 Sequential
450:1 ANSI

Brightness uniformity: >90%

Input resolutions: From VGA up to 4K UHD (3,840 x 2,160) @ 60Hz
or up to 2,560 x 1,600 @ 120Hz

Lens range

(R9802232) – EN68 (0.30:1) – Periscope Lens (requires vertical installation)

(R9801832) – FLDX UST (0.41:1) – 90° Lens

(R9802244) – EN67 (0.65:1)

(R9802243) – EN66 (0.80 – 1.21:1)

(R9802003) – EN76 (0.95 – 1.30:1)

(R9802242) – EN63 (1.20 – 1.70:1) *

(R9802241) – EN61 (1.70 – 2.50:1) *

(R9801211) – EN44 (2.50 – 4.60:1)

*Standard Lens Option(s)

Latency: TBD

Optical lens shift

Up to 122% vertical lens shift & up to 40% horizontal lens shift (depending on lens selection)

Visit the Barco Residential Lens Calculator for further information
Download Lens & Airflow Data Here

Color correction: P7 RealColor™

Color gamut: REC.709
DCI (P3) via internal filter

Image processing: Embedded Warp & Blend Engine

WARP: 4-Corner Warp & Bow Correction via Warp Engine

Orientation: 360° Rotation

Network connection: 10/100 Ethernet via RJ45 connection

Operational humidity: 20 to 80% (relative humidity)

HDR: HDR10

3D: Active Stereoscopic 3D
Additional hardware required please contact an authorized Barco representative for details

Inputs: 1 x HDMI^TM 2.0 (HDCP 2.2)
1 x HDBaseT (HDCP 1.4 – 9Gbps only)
2 x Dual Link DVI-D
2 x Display Port (1.2)
12G-SDI 1 x RJ45 Ethernet
1 x RS232
1 x Remote Control (RC)
3 x USB (2 x Rear, 1 x Front)
DMX (1 x Input, 1 x Output)

Shipping Dimensions: Excluding Lens
464 x 679 x 773 mm
18.27 x 26.7 x 30.4 in

Control: IR, RS232, IP, 12v Trigger
Driver modules available for: Crestron, Control4, RTI & Savant NOTE: 12v Trigger(s) do not follow standard functionality and require an IP command to enable / disable them.
Download our integration guide for more information.

Shipping weight: TBC

Power requirements: 100 – 240V / 50 – 60Hz

Standard accessories: Power Cord, Remote Control

Certifications: CE, FCC Class A and cCSAus

Power consumption: 570 W – Max

Noise level (typical at 25°C/77°F): 30 – 33 dB(A) Max.

24/7 operation: This projector is designed and warranted for heavy duty 24/7 operation.
Specific measures and design considerations have been made in order for it to comply with stringent requirements in challenging applications.

Operating temperature: 10 to 45 °C at Sea Level
Optimal Set Point: 20 °C

*: * Service required following 20,000 hours use
Please contact an authorized Barco representative for details

BTU per hour: 1,945 BTU/h – Max

Airflow requirements: Air Inlet (from Rear w/Feet Down): Right Side
Exhaust (from Rear w/Feet Down): Rear Clearance Requirements:
Front: 1cm
Left: 1cm
Right: 25cm
Rear: 25cm
Top: 1cm
