Asano N1 įėjimų modulis
Basalte Asano

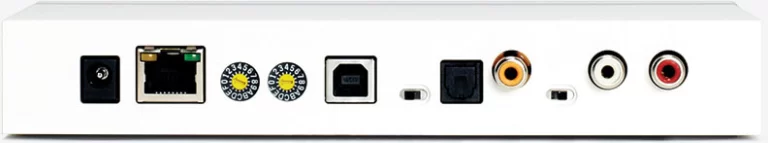

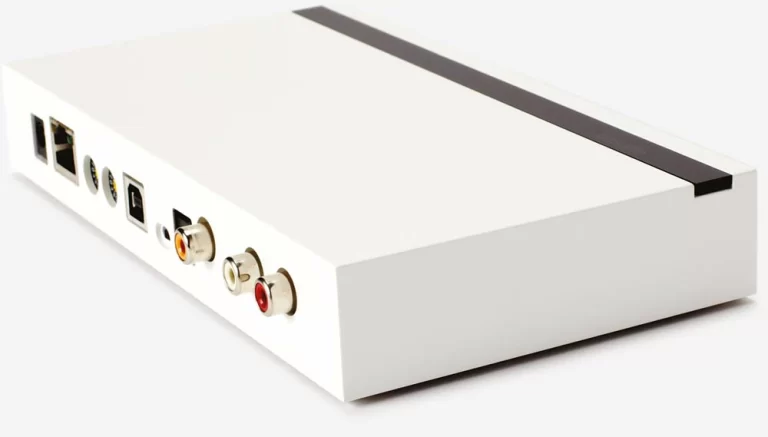

Asano N1 is a network node to connect an extra source to the Asano system: analogue, S/PDIF, optical or USB.
The N1 module can perfectly be hidden behind TV sets to seamlessly integrate TV sound as a source for the Asano music system.
Use the USB input to connect a computer as a source for the audio system, having a fully digital path all the way up to the amplifier.
You can also use N1 to add an additional analogue or digitalsource when it is remotely located or when all audio inputs on the amplifiers are already taken.
There is no need for any network configuration. Two rotary dials configure the source number in the Asano system, easy and simple.
Power for the module can be supplied with a separate power supply (12V) or by Power over Ethernet (PoE).
Techninė specifikacija:
Total number of sources
1 analog input or 1 S/PDIF coaxial input or 1 S/PDIF optical input or 1 USB input
Resolution/sample frequency
24 bit 48 kHz
Input signal sensing
no
KNX
no
Power
12V DC - PoE
Dimensions (w x h x d) mm
188 x 30 x 105
Weight
0,6kg
certification
CE
