LRX-83 įmontuojama kolonėlė

Stealth Acoustics
1149 €

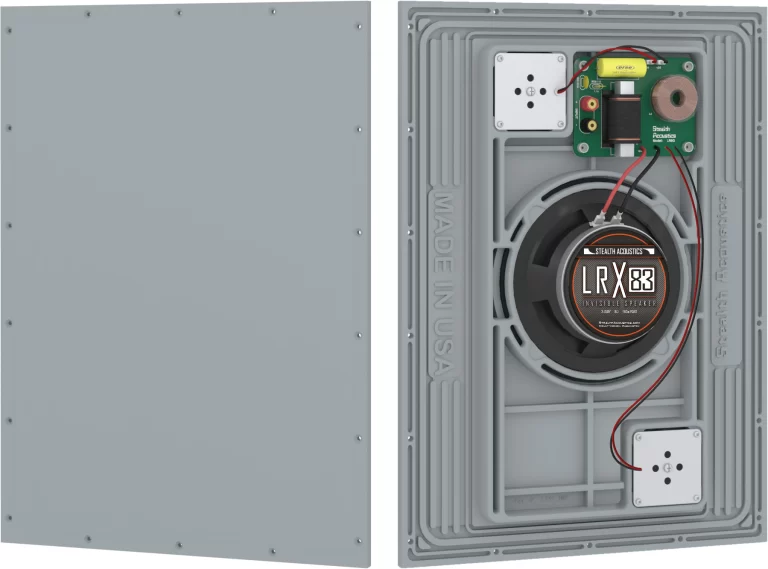

3-WAY HIGH PERFORMANCE INVISIBLE LOUDSPEAKER The Stealth Acoustics model LRx83 is a three-way, full-range loudspeaker system that becomes completely invisible after installation. The loudspeaker has a rigid frame that attaches directly to standard structural framing. The paintable active diaphragm face is bonded to the frame of the speaker panel, creating an active area surrounded by a stable mounting area. Installation instructions are shown on a paper overlay that is to be removed before installation. The overlay can also be used as a cutting template for retrofitting the speakers into existing wallboard. The LRx83 may be installed in either the wall or ceiling and on-site finishing options include latex paint, light wallpaper, fabrics and selected texture coats. There is no need for nonstandard wallboard finishing materials. Advanced finishing methods such as veneer treatments may be supported using special techniques. The Stealth Acoustics LRx83 incorporates an acoustically coupled high quality low profile, high-power 8” cone woofer, a 30mm direct coupled neo-magnet mid-range driver and a direct coupled 25 mm neo-magnet high-frequency driver. Advanced internal materials allow for smooth frequency extension to 20 kHz. When the LRx83 is installed in the recommended backbox, frequency response below 40 Hz can be achieved. The LRx83 contains two independent protection circuits (high/mid-frequency and low-frequency sections) that automatically reset upon reduction of excessive amplifier power.
LRX-83 įmontuojama kolonėlė

Techninė specifikacija:

Frequency Response
40Hz to 20kHz

Power Capacity
160 watts RMS; 320 watts Peak; 80 watts minimum recommended power

Protection
Independent self-resetting devices (high/mid, low frequency stages)

Sensitivity
83 dB (1 watt / 1 meter)

System Impedance
8Ω nominal

Driver Components
High-frequency: 1” (25 mm) neodymium driver; Mid-frequency: 1.18” (30 mm) neodymium driver; Low-frequency: 1.5” (38 mm) voice coil, 8” (203 mm); Ceramic 20 oz. (622 gr) magnet cone woofer

Polar Dispersion
170 degrees vertical and horizontal

Dimensions
Width: 403 mm; Height: 559 mm

Mounting Depth
58 mm

Product Weight
(6.3 kg) each

Included Accessories
Mounting shims; Mounting screws; Terminal wrench
