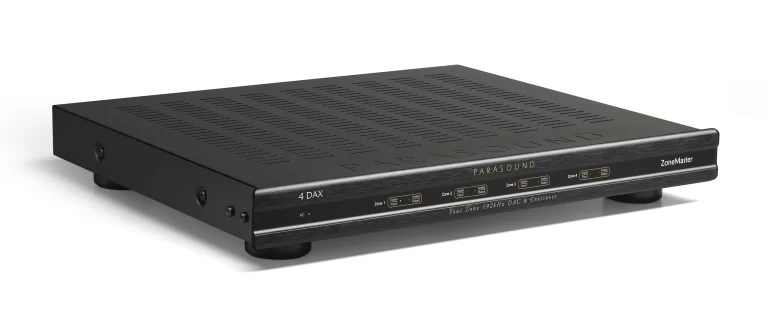

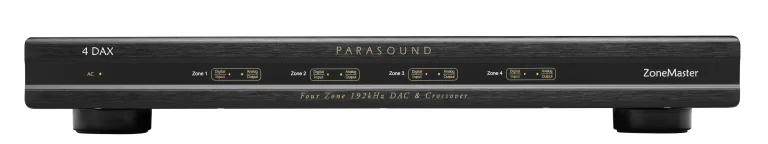

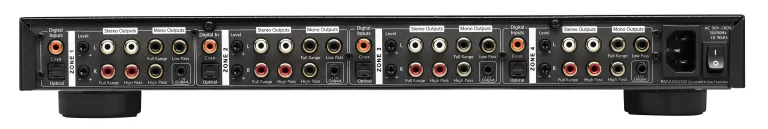

ZoneMaster 4 DAX keitiklis (DAC)
Parasound
1279 €
- Four Independent DACs in a single chassis
- 192kHz/24bit ESS Sabre DAC ICs
- Level controls for all channels
- Hyperstream™ jitter eliminator
- 3 Volt high gain outputs
- Optical and coaxial digital inputs
- Indicators for digital input signal lock and analog audio output
- 12V trigger output for each zone with turn off delay
- All crossovers are 80Hz and 18dB /octave
- Full range stereo outputs
- Full range mono outputs
- High pass stereo outputs
- High pass mono outputs
- Low pass mono subwoofer outputs
Techninė specifikacija
Frequency Response (analog output)
10 Hz - 20 kHz, +0/-0.5 dB
Total Harmonic Distortion
0.009%
Interchannel Crosstalk
84 dB at 20 kHz
Audio Output Level
3.0 Volts RMS
S/N Ratio
> 100 dB, IHF A-weighted; Supported Sampling Rates (digital input) Up to 192 kHz / 24-bit PCM
Digital to Analog Converter
ESS Sabre ES9023
Crossover Frequency (high and low pass)
80Hz and 18dB /octave
DC Trigger Output
12 Vdc, 50 mA per zone
AC Power Requirement
10 Watts maximum; 90-250 VAC 50/60 Hz
Dimensions
Width: 17.25" (437 mm); Depth: 14.25" (362 mm); Depth: 16" (369 mm) with cables connected; Height, with feet: 2.5" (105 mm); Height, without feet: 1.75" (44.5 mm), 1U
Weight
Net: 11 lbs (5 kg); Shipping: 17 lbs (7.7 kg)
