HOPS5 pasyvi kolonėlė
Coda Audio
1503 €
HOPS5 (High Output Point Source) is a super-powerful, passive 2-way system with immense output-to-size ratio, and 100° x 100° coverage. If you’re looking to kit out a small to medium size venue where you’re in need of high fidelity sonics and plenty of kick, HOPS5 is the box for you.
These speakers can be used for corporate events or exhibitions, DJ foldback, sound reinforcement for small clubs, or even as stage monitors or front fills at a live show. In the theatre, they work great as under balcony fills.

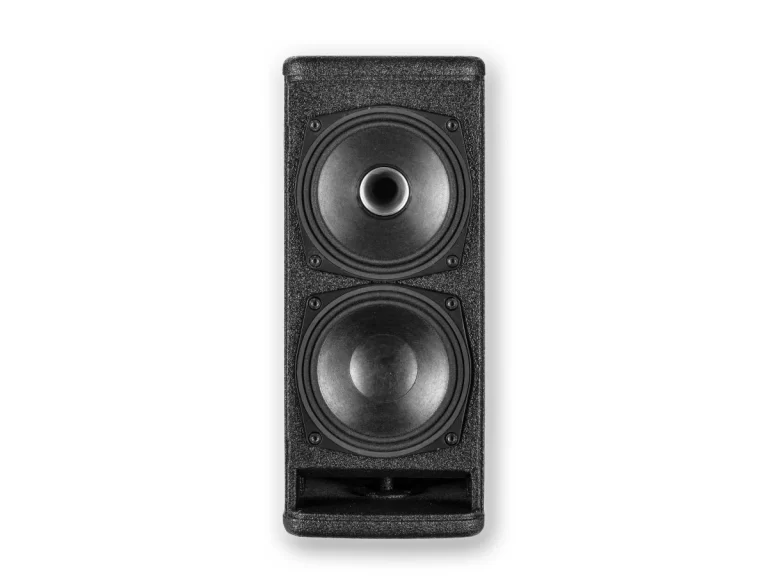

HOPS5 has a double 5-inch coaxial system, high power handling of 300 W, and a symmetrical coverage of 100°. At the heart of HOPS5 are its two super-smart drivers: one 5-inch/1.75-inch neodymium coaxial driver, and an additional 5-inch LF driver. The 5-inch cone covers the 60-1500 Hz frequency range with extremely high efficiency and a silky smooth linear response. What’s particularly clever is the design: three aluminium shorting rings reduce inter-modulation distortion, which minimises induction variation while reducing thermal compression at the same time. In a nutshell, it reduces the distortion massively at longer excursion levels, and in doing so, improves the overall sound quality, providing deep and punchy bass.
The high frequency driver contains an ultra-light 1.75-inch annular diaphragm which produces an exceptional transient response with very high efficiency from 1 kHz to 20 kHz. This new transducer was engineered to radiate a single source, coherent 100° wave front for superior dispersion control and pristine and transparent high fidelity sound. Together, they guarantee uniform coverage with perfect time alignment between the components.
HOPS5 is designed to work with dedicated CODA Audio LINUS5-C or LINUS10-C amplifiers as an integrated solution for DSP control, amplification, network remote control, and diagnostics. This integrated solution guarantees optimal performance as well as protection.
Techninė specifikacija:
Type
Ultra compact 2-way full range versatile system
Application
Superior quality point source for near-field applications
Frequency response
80 Hz – 20 kHz (-6 dB)
Power handling AES
300 W
Peak power
1200 W
Sensitivity
94 dB
Max. SPL peak
124 dB
Dispersion
100° conical
Low frequency
5″ woofer, 1.5″ (38 mm) VC, 150 W (AES)
Mid/High frequency
5″/1,75″ Neodymium coaxial driver, Low: 1.5″ (38 mm), High: 1,75″ (44.4 mm) voice coil, 150 W + 80 W (AES)
Crossover
1.5 kHz passive
Nominal impedance
8 Ω (+1/-1)

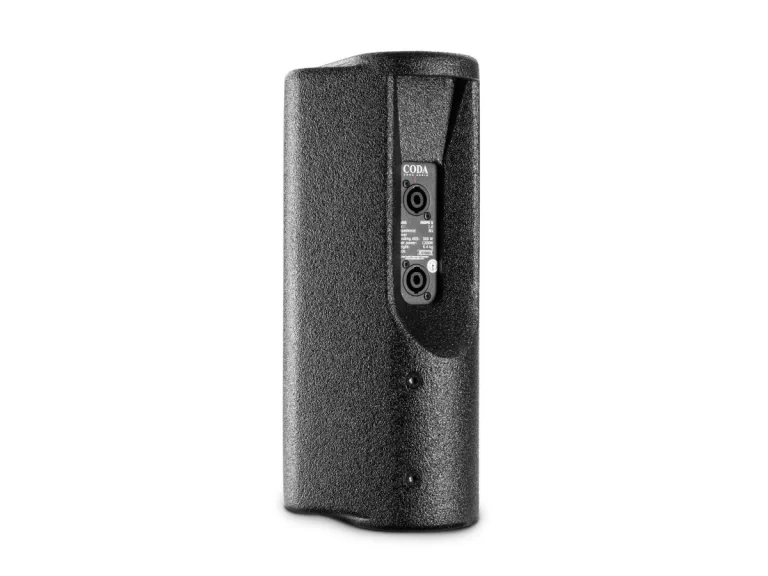

Input connectors
2x Neutrik™ NL4MP
Suspension HOPS5
fixing points
Enclosure material
Birch plywood
Finish
Polyurea black coating (water resistant)
Dimensions (WxHxD)
146 x 349 x 200 mm
Net weight
6,4 kg
