Zpre3 stereo pradinis stiprintuvas

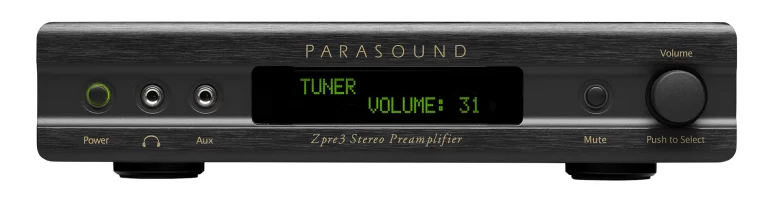

- Front panel LCD function display with dimming
- Automatic turn on volume memory
- Favorite volume memory with remote control button
- 2-way RS232 w/ exact volume control & feedback
- Discrete commands for all functions
- Rename inputs to match connected source

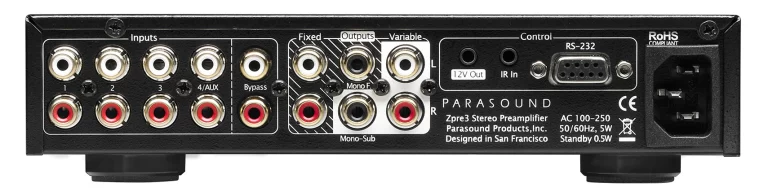

- 5 audio inputs including a front panel Aux input
- Bypass input integrates easily w/ a Sonos Connect® etc.
- Bass, treble and balance adjustments by remote control
- Variable and fixed stereo outputs
- Variable and fixed mono/subwoofer outputs
- 12dB auto gain offset at front panel AUX to match levels of other sources
- 12V trigger output and rear panel IR input
- Rack mount kit sold separately (click to view)
Techninė specifikacija:
10 Hz – 40 kHz, +0/-0.5 dB
(20 Hz – 20 kHz) <0.015%
62 dB at 20 kHz
250 mV = 1 V output; Total gain = 12dB (volume set to 100); Unity Gain = Volume set to 88; Maximum Output: 3.5 V
24k Ω
470 Ω
>100 dB, input shorted, IHF A-weighted; >90 dB, input shorted, unweighted
12Vdc, 50ma
5 Watts powered on; 0.5 Watts in standby; 100 – 250 VAC 50/60 Hz
Width: 8.5″ (220 mm); Depth: 10″ (254 mm); Depth: 12″ (305 mm) with AC cord and cables connected; Height, with feet: 2″ (51 mm); Height, without feet: 1.75″ (45 mm), 1U
4.0 lbs (1.8 kg)
