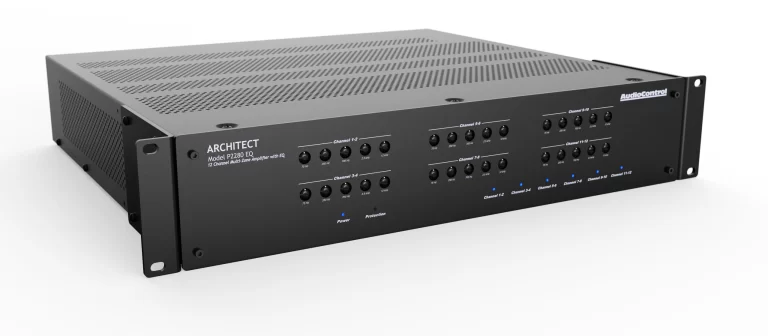

Architect P2280 EQ 12 kanalų stiprintuvas

Audiocontrol
4339 €

Features:

  • 12 Channels of High Power and AudioControl Performance
  • Five Band 12 Channel Speaker Equalization
  • 100 watts per Channel at 8 Ohms (All Channels Driven)
  • 200 watts per Channel at 4 Ohms (All Channels Driven)
  • Bridgeable as an 6 channel amplifier at 400 watts
  • Low Standby Current Draw of Less Than 1 Watt
  • Compact Design Fits into 2 Rack Spaces
  • LightDriveTM Anti-Clipping Protection Circuitry
  • 2 x Input Buses (Digital and Analog)
  • Local Zone Input Trigger
  • 12v Trigger Input and Output
  • Signal-Sensing On All Channels
  • Input Busing and Level Controls
  • Mono-switch for Improved Bridging
  • Beefy Rack Mount Brackets Included
  • Five Year AudioControl Warranty

12 channel multi-zone high-power amplifier with eq


The Architect ‘P’ Series superbly complements AudioControl’s popular high-power Architect multi-zone amplifier series with an industry leading 100 Watts RMS per channel into 8 ohms, 200 watts per channel into 4 ohms; all channels driven.

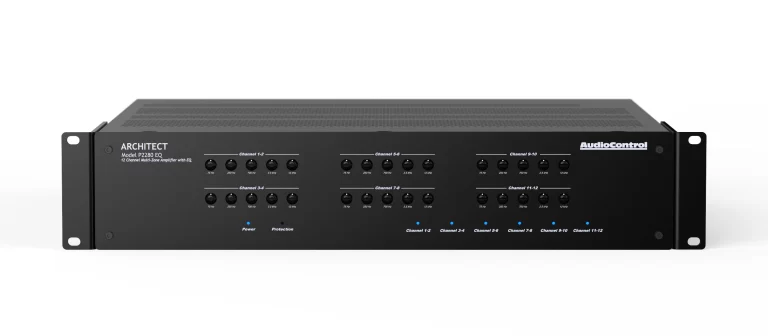

The P2280 EQ uses a cool running proprietary design, including AudioControl’s LightDriveTM anti-clipping protection and features input busing capability, output pass-thru, master 12V trigger in/out plus local 12V trigger inputs on all zones, signal sensing as well plus coax SPDIF inputs for digital sources. AudioControl’s legendary equalization controls are easily accessible from the front panel and may be covered with the included magnetic security panel once the system is dialed in.


Available in a robust black powder coat finish, the Architect Model P2280 EQ is designed, engineered and manufactured at AudioControl’s manufacturing facilities located in Seattle, USA. The Architect ‘P’ series comes with AudioControl’s legendary 5-year warranty and is available exclusively to the residential custom install and pro audio markets through AudioControl authorized dealers.

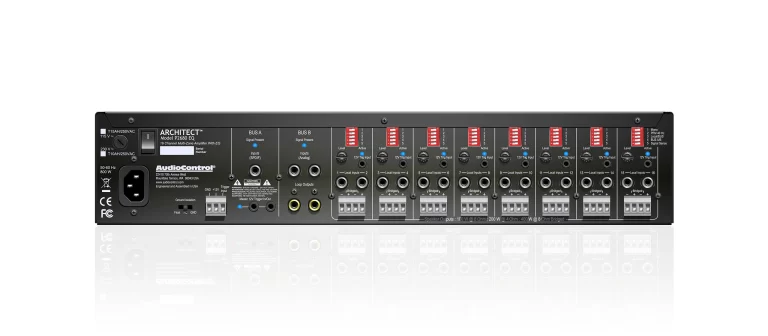

INPUTS

Inputs
6 Stereo Local Analog Inputs, 1 Stereo Bus Digital Input, 1 Stereo Bus Analog Input

Input Sensitivity
Variable 0-1 Vrms

Analog Input Sensitivity
1 Vrms for full output; level at maximum

OUTPUTS

Amplifier Channels
12

1 Stereo Bus Analog Output

Power Output (8Ω)
100W per channel

Power Output (4Ω)
200W

Power Output (Bridged Mono)
400W

Minimum Speaker Load

PERFORMANCE

Damping Factor
>300

Signal to Noise
>105 dB, (A-wtd, ref full output)

Crosstalk
>80 dB @ 1kHz

Gain
30 dB

Analog Input Sensitiviy
1 Vrms for full output, level at maximum

DAC Specifications
32 – 96 kHz sample rate, 16/24 bit depth

EQUALIZER

Centers
75 Hz, 250 Hz, 700 Hz, 2.5 kHz, 12 kHz

Range
+/- 12 dB

CONTROL

Remote Power Trigger
+12 VDC or Dry Contact Closure, 2 x 1/8″ TS mono in/out

AC POWER REQUIREMENTS

Standby
0.9W

Idle (main power on, all channels off)
52W

All channels active
87W

All channels 1/8th rated power
265W

Full power (20A residential service limited)
2400W

Protection
clipping, short circuit, thermal, ultrasonic, DC offset, stable into reactive or mismatched loads

BTU/HR OUTPUT

Standby
3.1 BTU/hr

Idle (main power on, all channels off)
178 BTU/hr

All channels active
270 BTU/hr

All channels 1/8th rated power
361 BTU/hr

Full power (20A residential service limited):
2194 BTU/hr

WEIGHTS & DIMENSIONS

Dimensions
19″ W (w/rack ears) 17” W (w/no rack ears) x 15.5” D x ” H 3.5″ (2U)

Weight
20.0 lbs (9.1 kg)
