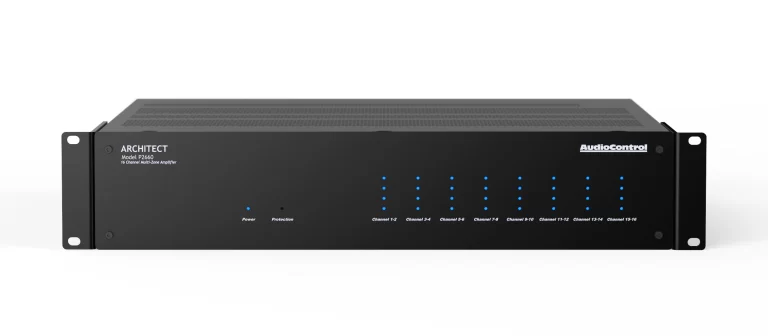

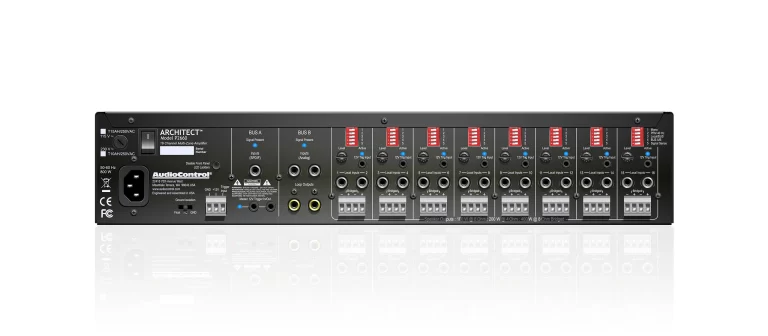

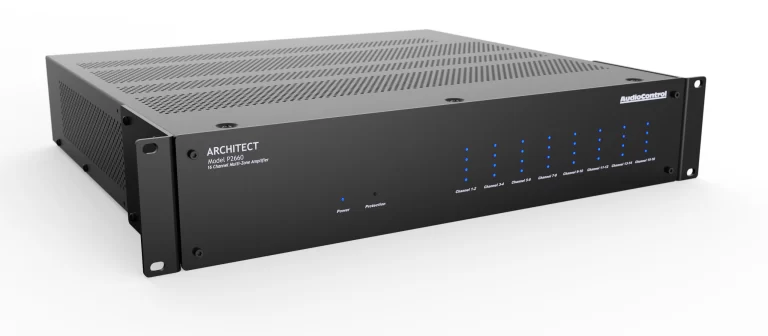

Architect P2660 16 kanalų stiprintuvas

Audiocontrol
4749 €

Features:

  • 16 Channels of High Power and AudioControl Performance
  • 100 watts per Channel at 8 Ohms (All Channels Driven)
  • 200 watts per Channel at 4 Ohms (All Channels Driven)
  • Bridgeable as an 8 channel amplifier at 400 watts
  • Low Standby Current Draw of Less Than 1 Watt
  • Compact Design Fits into 2 Rack Spaces
  • LightDriveTM Anti-Clipping Protection Circuitry
  • 12v Trigger Input and Output
  • 2 x Input Buses (Digital and Analog)
  • Local Zone Input Trigger
  • Signal-Sensing On All Channels
  • Input Busing and Level Controls
  • Mono-switch for Improved Bridging
  • Beefy Rack Mount Brackets Included
  • Five Year AudioControl Warranty

16 channel multi-zone high-power amplifier


The Architect ‘P’ Series superbly complements AudioControl’s popular high-power Architect multi-zone amplifier series with an industry leading 100 Watts RMS per channel into 8 ohms, 200 watts per channel into 4 ohms; all channels driven.


The P2660 uses a cool running proprietary design, including AudioControl’s LightDriveTM anti-clipping protection and features input busing capability, output pass-thru, master 12V trigger in/out plus local 12V trigger inputs on all zones, signal sensing as well plus coax SPDIF inputs for digital sources.


Available in a robust black powder coat finish, the Architect Model P2660 is designed, engineered and manufactured at AudioControl’s manufacturing facilities located in Seattle, USA. The Architect ‘P’ series comes with AudioControl’s legendary 5-year warranty and is available exclusively to the residential custom install and pro audio markets through AudioControl authorized dealers.

INPUTS

Inputs
8 Stereo Local Analog Inputs, 1 Stereo Bus Digital Input, 1 Stereo Bus Analog Input

Input Sensitivity
Variable 0-1 Vrms

Analog Input Sensitivity
1 Vrms for full output; level at maximum

OUTPUTS

Amplifier Channels
16

1 Stereo Bus Analog Output

Power Output (8Ω)
100W per channel

Power Output (4Ω)
200W per channel

Power Output (Bridged Mono)
400W

Minimum Speaker Load

PERFORMANCE

Damping Factor
>300

Signal to Noise
>105 dB, (A-wtd, ref full output)

Crosstalk
>80 dB @ 1kHz

Gain
30 dB

Analog Input Sensitiviy
1 Vrms for full output, level at maximum

DAC Specifications
32 – 96 kHz sample rate, 16/24 bit depth

CONTROL

Remote Power Trigger
+12 VDC or Dry Contact Closure, 2 x 1/8″ TS mono in/out

AC POWER REQUIREMENT

Standby
0.9W

Idle (main power on, all channels off)
42W

All channels active
90W

All channels 1/8th rated power
338W

Full power (20A residential service limited)
2400W

Protection
clipping, short circuit, thermal, ultrasonic, DC offset, stable into reactive or mismatched loads

BTU/HR OUTPUT

Standby
3.1 BTU/hr

Idle (main power on, all channels off)
144 BTU/hr

All channels active
307 BTU/hr

All channels 1/8th rated power
415 BTU/hr

Full power (20A residential service limited)
2124 BTU/hr

WEIGHTS & DIMENSIONS

Dimensions
19″ W (w/rack ears) 17” W (w/no rack ears) x 15.5” D x ” H 3.5″ (2U)

Weight
20.5 lbs (9.3 kg)
