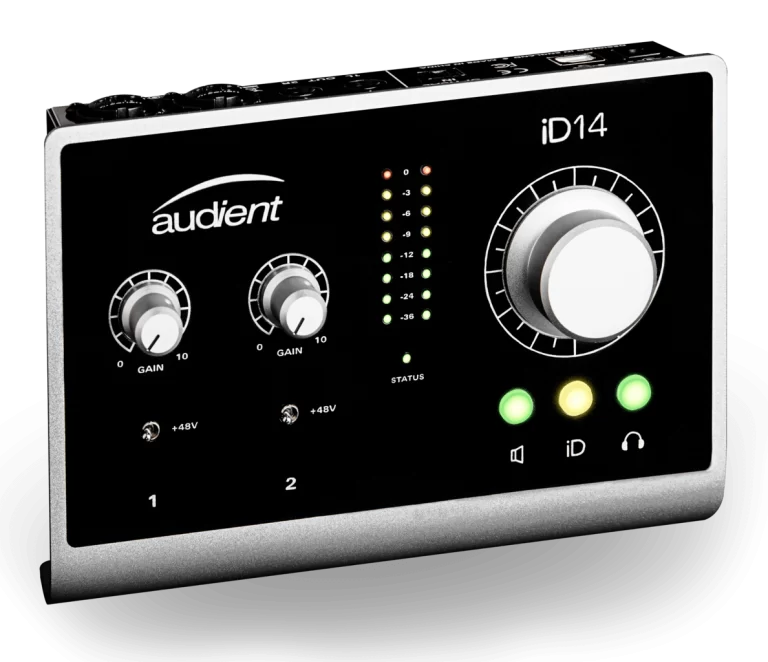

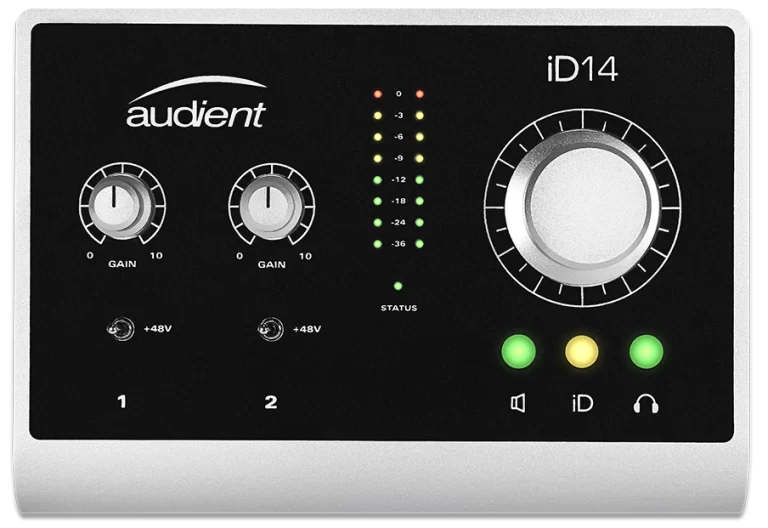

iD14 garso korta
What Does The Audient Mic Pre Provide?
Clean, punchy and musical character
Flexible topology – design optimised gain range between 0 – 70db gain
Low noise floor – 30,000 times quieter than the signal level
Wide bandwidth – preserving your transient detail
Transformer-less, RF immune input stage for detailed resolution
Pristine Converter Technology
iD14 provides you with high performance AD-DA converters. Quality in the analogue stages of design comes from years of experience as analogue console designers, and when coupled with outstanding converter technology it enables you to hear audio as it’s supposed to sound. The importance of converters should never be underestimated. Experience audio the Audient way.
MICROPHONE PREAMPLIFIER
0 to 66 dB (inc. +10 dB software boost)
-10 to 56 dB (-10dB hardwired line pad)
48V ±4V @ 10mA/Channel (12VDC only)
<-127.0 dBu
>80 dB @ 1kHz
+12 dBu (0 dBFS digital Maximum)
2.8 kΩ Balanced
>8kΩ Balanced
±0.1 dB 20Hz to 22kHz @ min. gain; ±1.0 dB 20Hz to 22kHz @ max. gain
<-90 dBu
0.0025% (-92 dBu)
96 dB un-weighted, 99 dB A-weighted

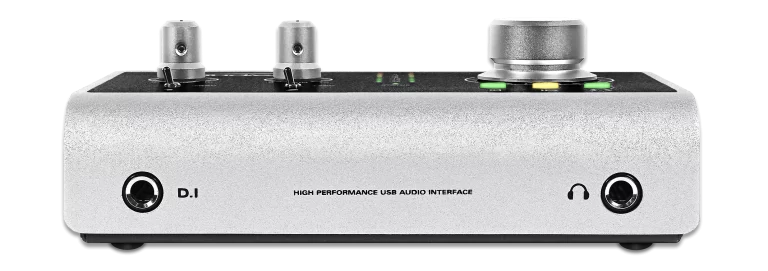

D.I (Channel 1)
0 to 66 dB (inc. +10 dB software boost)
+9 dBu (0.6% THD typical)
>500kΩ Unbalanced
±0.1 dB 20Hz to 22kHz
<0.04% all musical 2nd and 3rd harmonics
95 dB un-weighted, 98 dB A-weighted
ANALOGUE TO DIGITAL CONVERTER (ADC 1 & 2)
+12 dBu (0 dBFS digital maximum)
+12 dBu = 0 dBFS
±0.1 dB 10Hz to Fs/2 (flat to nyquist)
-100 dBu @ 1kHz & 10kHz
<0.002% (-94 dB)
<0.0015% (-97 dB)
113 dB un-weighted; 116 dB A-weighted
DIGITAL TO ANALOGUE CONVERTER (DAC 1&2)
+12 dBu (0 dBFS digital maximum)
+12 dBu = 0 dBFS
<100Ω Balanced
±0.1 dB 10Hz to Fs/2 (flat to nyquist)
<-105 dBu @ 1kHz & 10kHz
<0.003% (-90.5 dB)
114 dB un-weighted; 117 dB A-weighted
HEADPHONE OUTPUT (DAC 3&4)
+12 dBu
+12 dBu = 0 dBFS
+6 dB (optimised for loudness)
<30 Ω Balanced
±1.0 dB 10Hz to Fs/2 (load dependant)
-100 dBu @ 1kHz & 10kHz
<0.002% (-94 dB)
108 dB un-weighted; 111 dB A-weighted
+4 dBu, 0.005% THD+N, Power: 101mW
+5 dBu, 0.004% THD+N, Power: 64mW
+13 dBu, 0.0025% THD+N, Power: 39mW
DIGITAL INPUT
44.1kHz to 48kHz
88.2kHz to 96kHz SMUX
44.1kHz to 96kHz (Stereo)

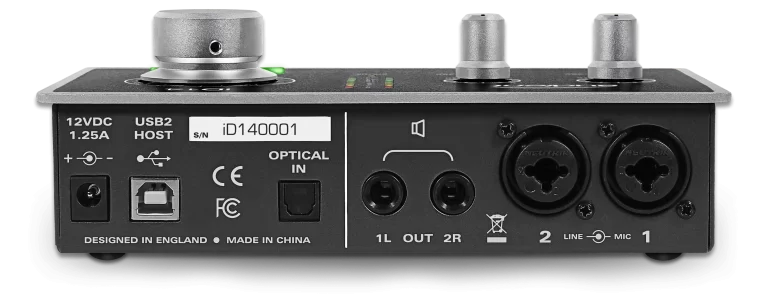

USB 2.0 HIGH SPEED
500mA @5V System Limit; 425mA @5V Maximum (No 48V) (Phantom power only available on 12VDC)
10 (2 Analogue, 8 Digital)
4 (4 Analogue)
ROUND TRIP (in-to-out) 44.1kHz 1.660ms; 48.0kHz 1.531ms; 88.2kHz 0.844ms; 96.0kHz 0.771ms
DAW Roundtrip Software Monitoring Latency @ 32 Sample Buffer (in to out)
6.52ms
4.65ms
