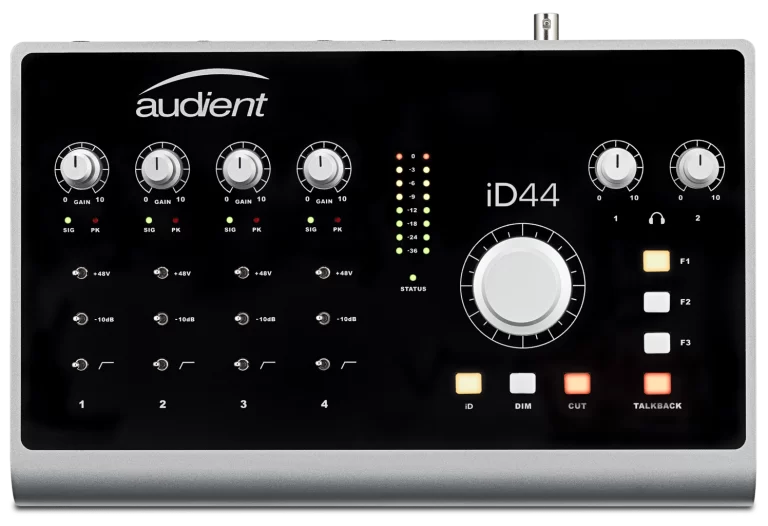

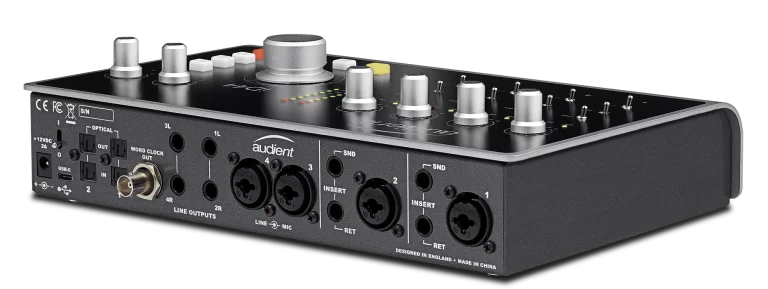

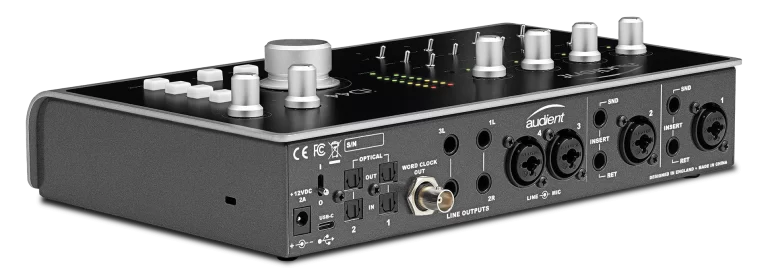

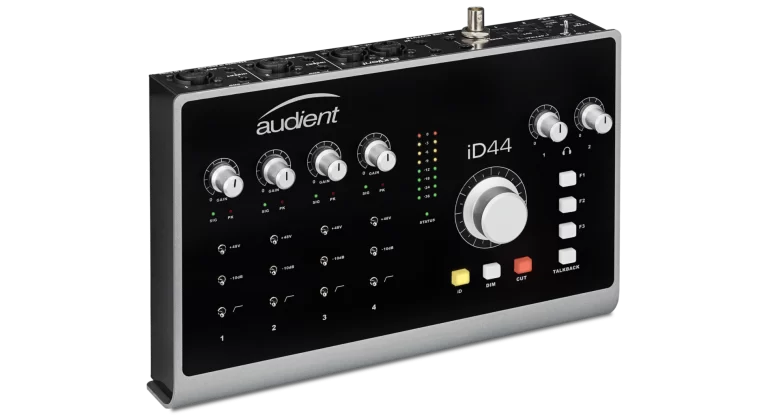

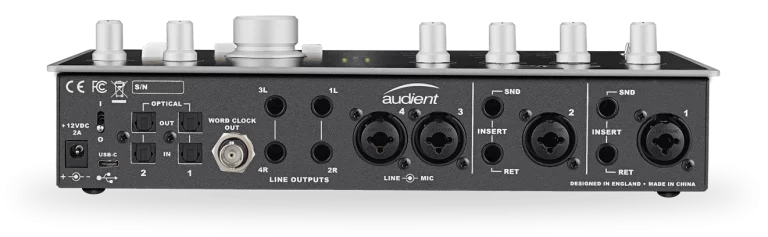

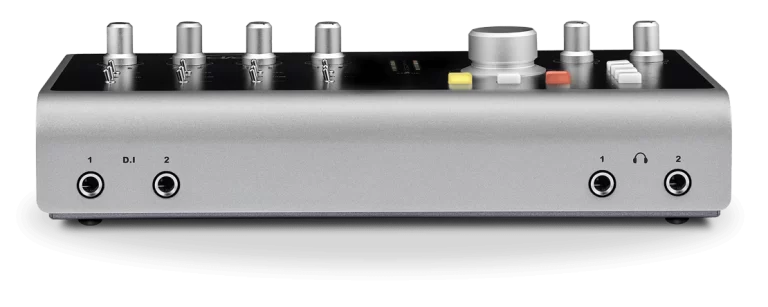

20in/24out Audio Interface
Inspired by our 20 years of expertise in analogue hardware design, iD44 is our most powerful audio interface yet. Featuring four Audient console mic pres, class-leading converters, ADAT expandability and more, iD44 delivers the audio performance of an an Audient console on your desktop, giving you the professional sound you deserve.
Audient Console Mic Pres
iD44 features four Class-A console mic pres, the same discrete circuit design found in our renowned recording console the ASP8024-HE and throughout our product range. Designed to deliver ultra- low noise and low distortion, the Audient mic pre will provide an accurate reproduction of your source, along with enough analogue warmth to add a bit of character, making it the go to mic pre for any project.
Pristine Converter Technology
Hear your audio more accurately than ever with iD44’s all new high performance AD/DA converter technology. Our next generation converters have been designed to deliver optimised dynamic range, ensuring you hear the most honest and natural translation of your recording. Hear subtle detail, make better mix decisions and experience remarkable clarity from the moment you press play.
MICROPHONE PREAMPLIFIER
MIC GAIN
0 to +60 dB
LINE GAIN
-10 to +50 dB
PHANTOM POWER
48v +/-4v @ 10mA/Channel
MIC EIN
<-126dBu
CMRR
>80dB @ 1kHz
MAXIMUM INPUT LEVEL
+18dBu (+28dBu with pad)
INPUT IMPEDANCE (Mic)
>3kΩ Balanced
INPUT IMPEDANCE (Line)
>10kΩ Balanced
FREQUENCY RESPONSE
+/-0.5dB 10Hz to 65kHz
CROSSTALK
<-90dBu @ 1kHz & 10kHz
THD+N @ 0dBu (1kHz)
0.003% (-96dBu)
SNR
96dB
Pad
-10dB
HPF
-3dB @ 100Hz, 2nd Order (12dB/Octave)
D.I (Channel 1)
D.I GAIN
-0 to +60 dB
MAXIMUM INPUT LEVEL
+10dBu
INPUT IMPEDANCE
1MegΩ Unbalanced
FREQUENCY RESPONSE
+/-0.5dB 10Hz to 50kHz
THD+N @ 0dBu (1kHz)
<0.3%
SNR
95dB
INSERT SENDS (Mic Pre Out)
MAXIMUM OUTPUT LEVEL
+18dBu
OUTPUT IMPEDANCE
<100Ω Balanced
ADC LINE INPUTS (Insert Returns)
MAXIMUM INPUT LEVEL
+18dBu
DIGITAL REFERENCE LEVEL
0dBFS = +18dBu
INPUT IMPEDANCE
>10kΩ Balanced
FREQUENCY RESPONSE
+/-0.5dB 10Hz to Fs/2
CROSSTALK
-115dBu @ 1kHz & 10kHz
THD+N @ -1dBFS (1kHz)
<0.0008% (-103dB)
DYNAMIC RANGE
121dB A-weighted
DAC OUTPUTS (1-4)
MAXIMUM OUTPUT LEVEL
+18dBu
DIGITAL REFERENCE LEVEL
0dBFS = +18dBu
OUTPUT IMPEDANCE
<100Ω Balanced
FREQUENCY RESPONSE
+/-0.5dB 10Hz to Fs/2
CROSSTALK
-118dBu @ 1kHz & 10kHz
THD+N @ -1dBFS (1kHz)
<0.0006% (-104dB)
DYNAMIC RANGE
126dB A-weighted
HEADPHONE OUTPUT (5&6)
MAXIMUM OUTPUT LEVEL
+14dBu
DIGITAL REFERENCE LEVEL
0dBFS = +14dBu
OUTPUT IMPEDANCE
<50Ω Balanced
FREQUENCY RESPONSE
+/-0.5dB 10Hz to Fs/2
CROSSTALK
-110dBu @ 1kHz & 10kHz
THD+N @ -1dBFS (1kHz)
<0.0008% (-103dB)
DYNAMIC RANGE
124dB A-weighted
MAX LEVEL INTO 30hms
+7.5dBu, 0.003%; THD+N, 2.6Vpk; Power: 225mW or Pavg 112.6mW
MAX LEVEL INTO 6ohms
+10.2dBu, 0.002%; THD+N, 3.55Vpk; Power: 210mW or Pavg 105mW
MAX LEVEL INTO 600ohms
+14.2dBu, 0.001%; THD+N, 5.7Vpk; Power: 54mW or Pavg 27mW
DIGITAL i/o
ADAT 16 CHANNELS
44.1 - 48kHz
ADAT 8 CHANNELS (SMUX)
88.2 - 96kHZ
STEREO S/PDIF
44.1 - 96kHz
USB2.0 HIGH SPEED
No. of INPUT CHANNELS 20
(4 Analogue, 16 Digital)
No. of OUTPUT CHANNELS 24
(8 Analogue, 16 Digital)
Connector
USB Type-C
Included Cables
1.5m USB 2.0 Type-C to USB Type-C; 1.5m USB 2.0 Type-C to USB Type-A

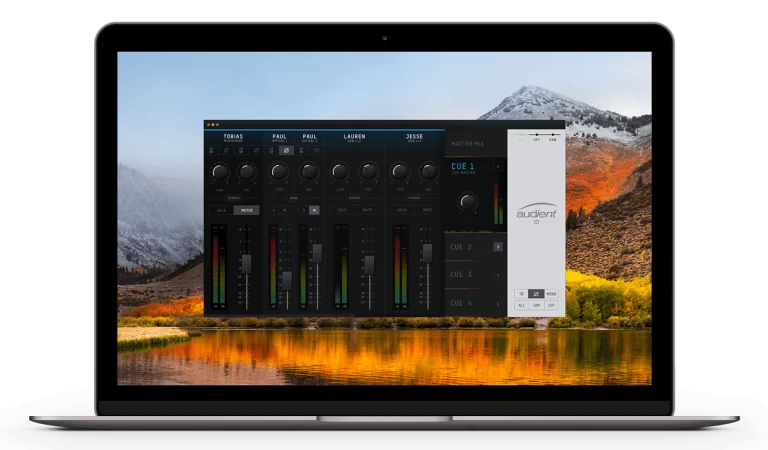

iD DSP Mixer Roundtrip (in to out) Latency
44.1 kHz
0.677ms
48.0 kHz
0.625ms
88.2 kHz
0.345ms
96.0 kHz
0.3236ms
DAW Playback Latency @ 32 Sample Buffer for Software Instrument Playback
44.1 kHz
~2.5ms
96.0 kHz
~1.6ms
DAW Roundtrip Software Monitoring Latency @ 32 Sample Buffer (in to out):
44.1 kHz
5.6ms
96.0 kHz
4.2ms
General
Weight
Unit: 1.75kg
Dimensions
Unit: 276mm (w) x 51mm (h) x 174mm (d)
