HMA120 mikšeris su stiprintuvu
Ecler
779 €
Self-powered Media Mixer
ECLER HMA120 is a self-powered mixer including an integrated media player and 5 external audio inputs: 3 x LINE ST, 1 MIC/LINE and 1 MIC. It features a 120W powered output that supports both low (4 Ω) and high impedance (70V, 100V) loudspeaker lines. It also includes a 2 level priority system (paging, emergencies, etc.), auto stand-by mode, AUX OUT and an additional remote control port to manage the source selection and output volume by means of WPm series wall panels.
HMA120 is the perfect integral solution for user-friendly and budget audio projects.
Key Features
- 2 balanced microphone input mixable with the selected music program (MIC1 and MIC2/LINE ST inputs)
- 3 line inputs for music sources
- Integrated audio player (supporting mp3 format) with USB and SD CARD slots for media storage devices

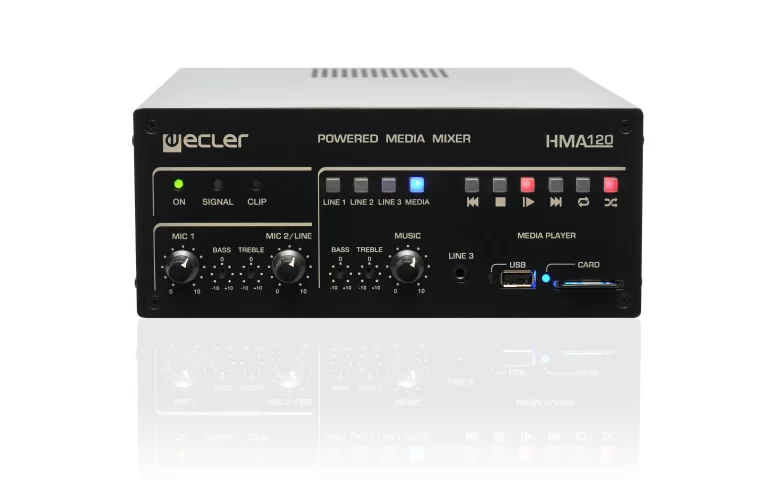

- Music program selector on the front panel: LINE1, LINE2, LINE3, MEDIA (integrated player)
- Noise gate and two-level priority system (Talkover 1 and Talkover 2) for MIC1 and MIC2/LINE inputs
- Independent level controls on the front panel for MIC1, MIC2/LINE and MUSIC signals
- 2-band EQ (BASS/TREBLE) for MIC1 and MIC2/LINE and 2-band EQ for program MUSIC signal

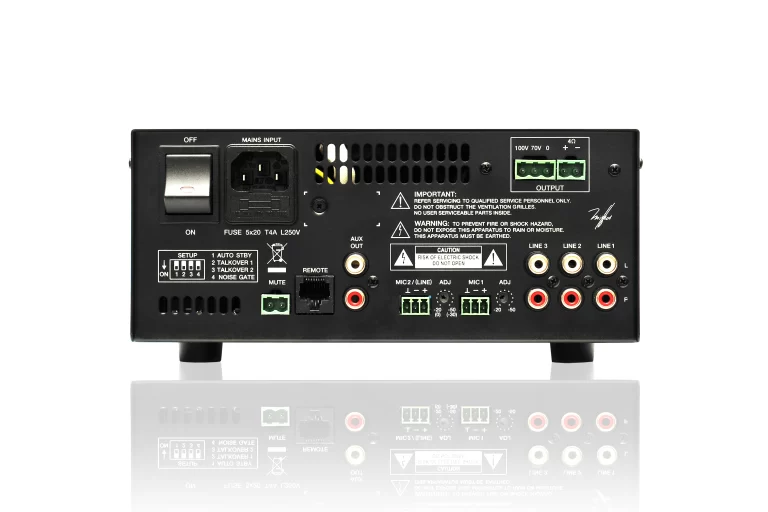

- REMOTE port for connecting WPm series wall panels, 0 – 10VDC (source selection and volume)
- MUTE port to remotely mute the unit from an external device, via dry contact closure
- Auxiliary Output
- Auto Stand-by function
Power output (4Ω, 8Ω, 70V & 100V steps)
@ 1% THD
110 WRMS @ 4Ω; 84 WRMS @ 8Ω; 110 WRMS @ 70V @ 41Ω; 110 WRMS @ 100V @ 85Ω
PEAK
140 WRMS @ 4Ω; 105 WRMS @ 8Ω; 140 WRMS @ 70V @ 41Ω; 140 WRMS @ 100V @ 85Ω
Frequency response
70Hz - 17kHz (-3dB/4Ω)
High pass filter 3rd order Butterworth
70Hz
THD + Noise @ 1 kHz Full power
<0.2%
Channel crosstalk @ 1kHz
>70dB (Inputs shorted)
AUX Output (L+R)
Output Level / Minimum Load
-6dBV / 10kΩ
Frequency response
15Hz - 40kHz (-1dB)
LINE Inputs
Sensitivity / Nominal impedance (LINE 1-2)
0dBV/>70kΩ
LINE 3
-6dBV/>70kΩ
Signal Noise Ratio
>87dB
MIC Inputs
MIC 1-2 (BAL)
-20 to -50dBV / >4.5KΩ
LINE (BAL)
4.5kΩ
CMRR @ MIC 1-2 (BAL)
>70dB @ 1kHz
Signal Noise Ratio
>60dB
Phantom voltage/current
+15VDC / 8mA max
Tone control (LINE & MIC)
BASS
100Hz ±10dB
TREBLE
6kHz ±10dB
Power consumption
pink noise, 1/3 power @ 4ohm
90 VA / 65W
Maximum power @ 4ohm
213 VA / 168W
Standby
5W
Dimensions
Panel WxDxH
210x230x88mm
Weight (Net)
5950g
Media Player
Inputs Sensitivity
-5dBV
Audio DAC
16 bit
S/N Ratio
96 dB
Dynamic range
90 dB
THD
0.02%
