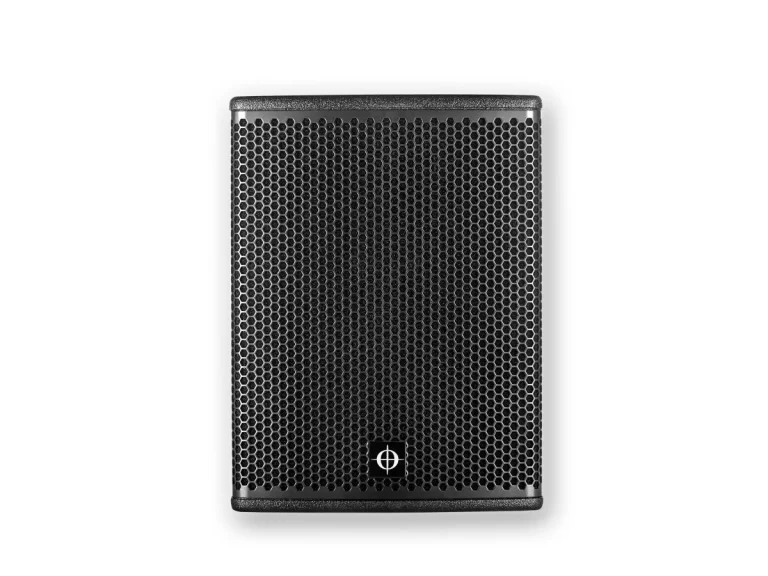

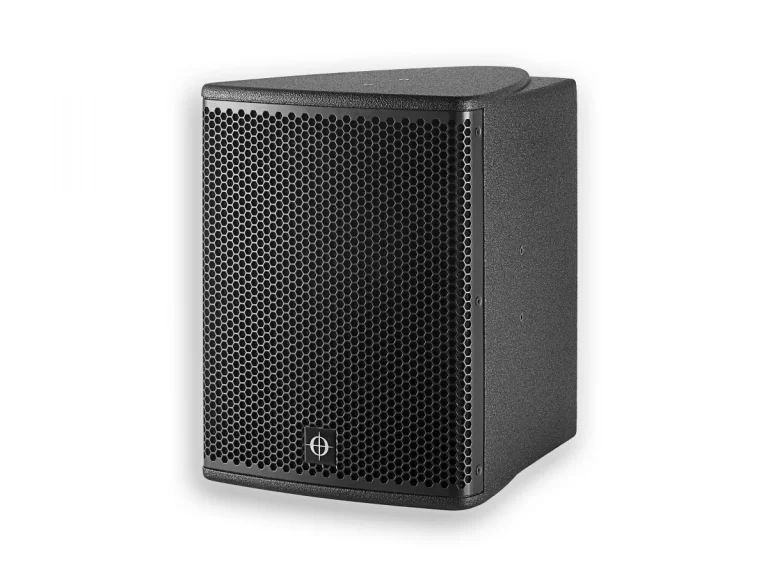

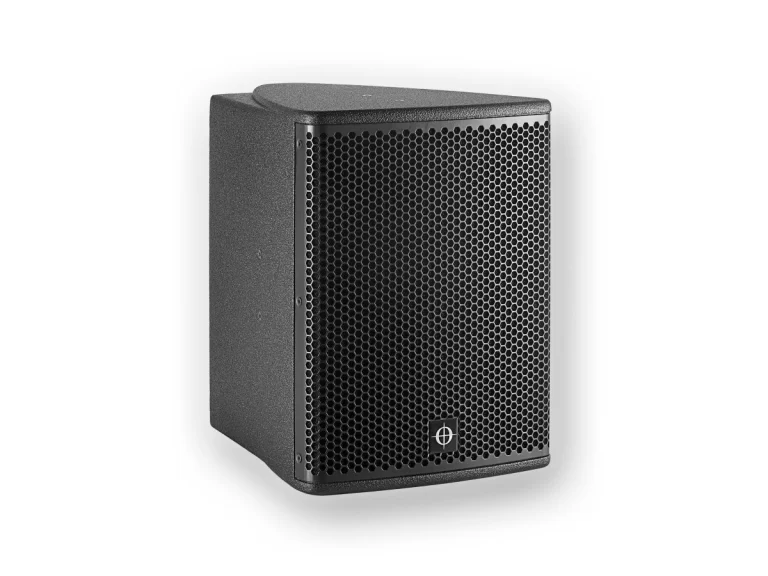

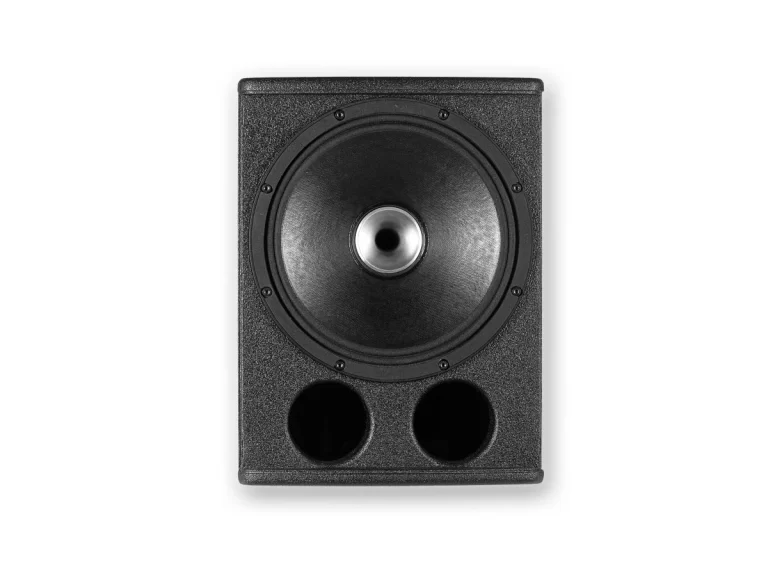

The CODA D12 is a passive 2-way coaxial loudspeaker system designed without compromise to provide a true one point source in a compact package. The cabinet contains a high power 12” woofer and a coaxially mounted ring diaphragm high frequency driver with 44.4mm voice coil.
The advanced design aligns the acoustical centers of the transducers to produce a single point source. This unique loudspeaker technology provides a coherent wave front without hot spots. Precise directivity of 90° conical ensures uniform coverage with perfect time alignment between the components.
Supported with a full range of mounting and flying accessories the D12 sets a state of the art solution for almost any high quality, near field installed sound reinforcement applications.
Advanced Driver Technology

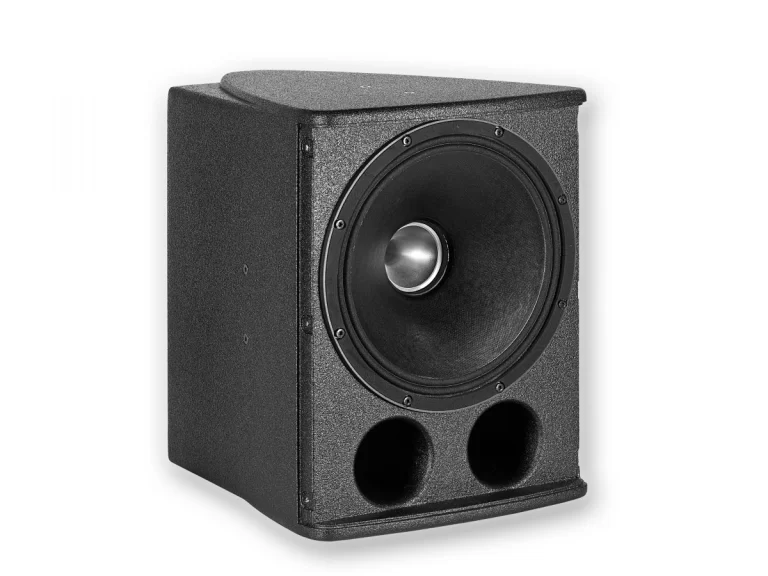

At the heart of the D12 is the new developed 12”/1.75” coaxial driver. The 12” cone driver covers the 60 – 1300 Hz range with high efficiency and smooth, linear response. Three aluminium shorting rings reduce inter-modulation distortion; minimize induction variation while reducing thermal compression.
The coaxially mounted high frequency driver contains an ultra light 1.75” annular diaphragm providing exceptional transient response with very high efficiency from 1 kHz to 20 kHz.
This new transducer was engineered to radiate a single source, coherent 90° wave front for superior dispersion control and high fidelity sound.
Techninė specifikacija:
Type
Compact 2-way coaxial installation system
Application
Superior quality near field applications
Frequency response
60 Hz – 20 kHz (-4 dB)
Power handling AES
600 W
Peak power
2400 W
Sensitivity
98 dB
Max. SPL peak
132 dB
Dispersion
90° conical
Low frequency
12″ woofer, 3″ (77mm) VC, 600 W (AES)
Mid/High frequency
Annular diaphragm compression driver, 1.75″ (44.4 mm) VC, 80 W (AES)
Crossover
1.2 kHz passive
Nominal impedance
4 Ω
Cabinets per amp channel
1

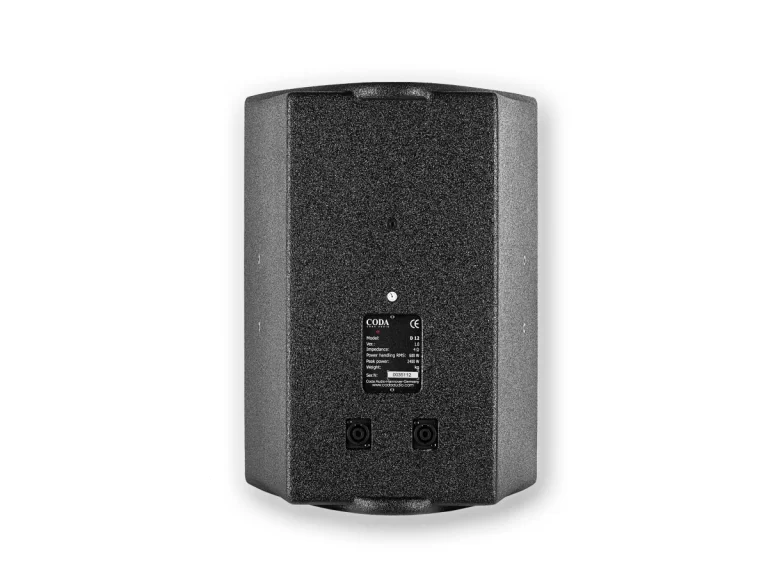

Input connectors
2x Neutrik™ NL4MP
Suspension
10x M6 threated points
Enclosure material
Birch plywood
Finish
Polyurea black coating (water resistant)
Dimensions (WxHxD)
342 x 452 x 425 mm
Net weight
19kg
