D5-Ceiling pasyvi kolonėlė
Coda Audio
925 €

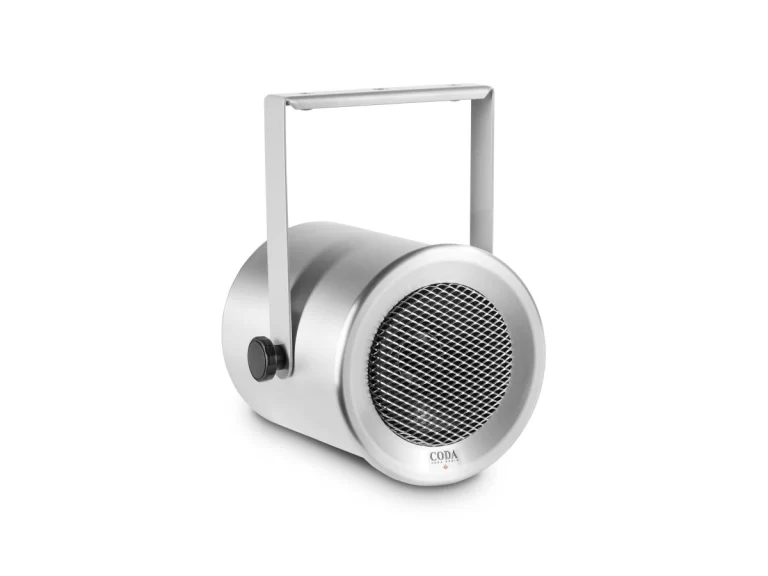

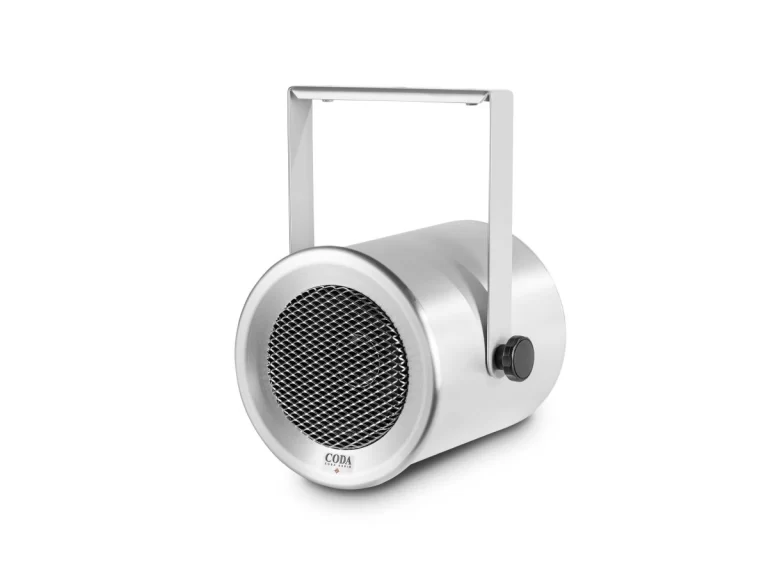

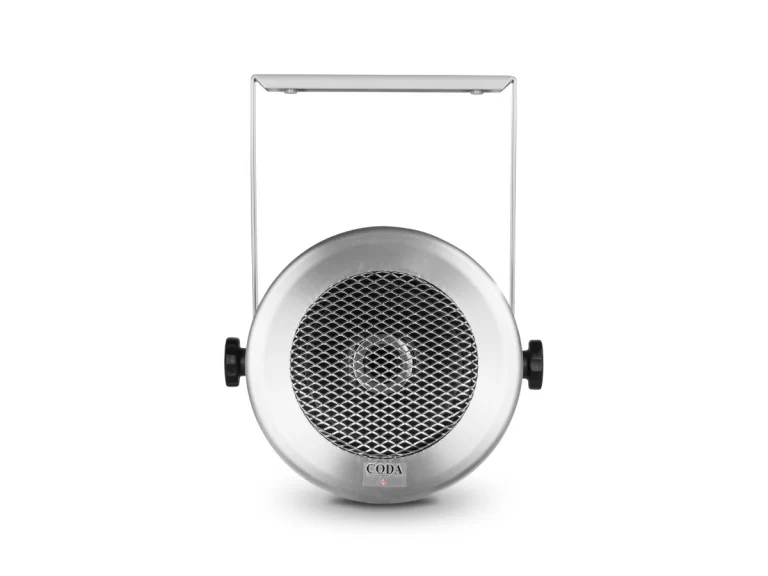

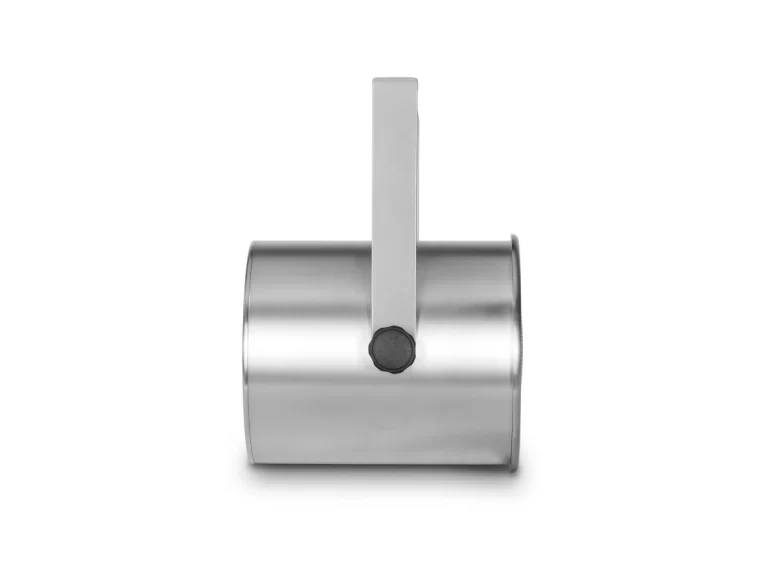

The CODA D5 is a passive 2-way 5”/1” coaxial loudspeaker system designed without compromise to provide a true one point source in an ultra compact package.
The cabinet contains a high power 5” woofer and a coaxially mounted neodymium driver with 44.4 mm voice coil. The advanced design aligns the acoustical centres of the transducers to produce a single point source. This unique loudspeaker technology provides a coherent wave front without hot spots. Precise directivity of 90° conical ensures uniform coverage with perfect time alignment between the components.
Techninė specifikacija:
Type
2-way coaxial ultra compact
Application
Superior quality short throw
Frequency response
90 Hz – 30 kHz (-3 dB)
Power handling AES
125 W
Program power
250 W
Peak power
500 W
Sensitivity
91 dB
Max. SPL peak
117 dB
Dispersion
90° conical
Low frequency
5″ woofer, 1.5″ (38 mm) voice coil, 120 W (AES)
High frequency
1″ coaxially mounted driver, 1.75″ (44.4 mm) voice coil, 80 W (AES)
Crossover point
1600 Hz passive
Nominal impedance
16 Ω
100 V version (optional)
100 VA

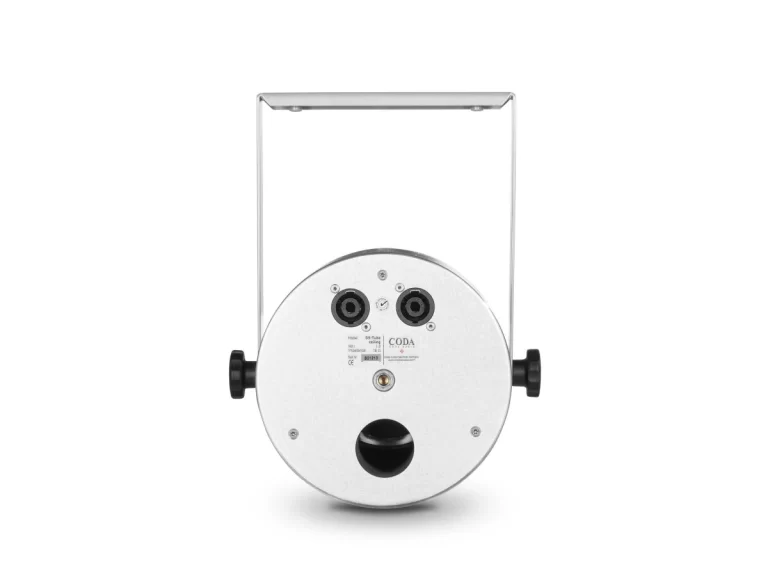

Input connectors
2 x Neutrik™ NL4MP
Enclosure material
Solid aluminum
Finish
Metal (all RAL-colours optional available)
Flying hardware
M8 Thread
Dimensions (ØxD)
170×193 mm, ceiling cutout Ø160 mm
Net weight
4 kg
