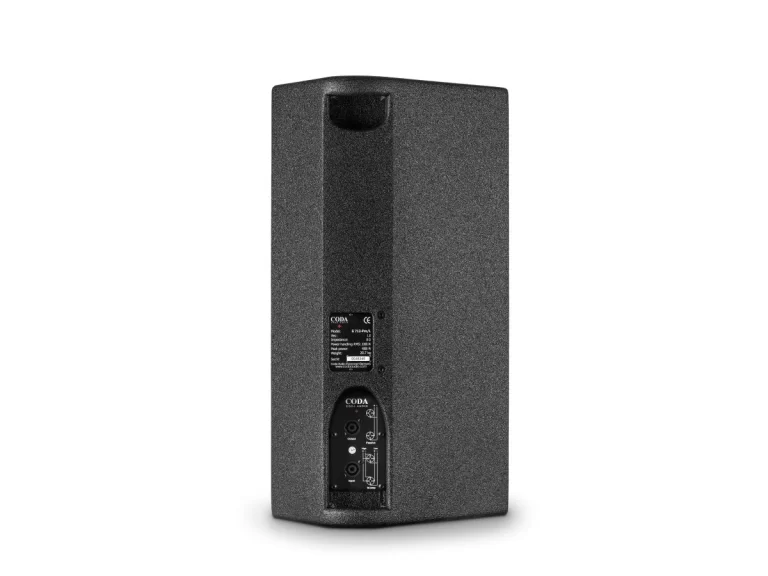

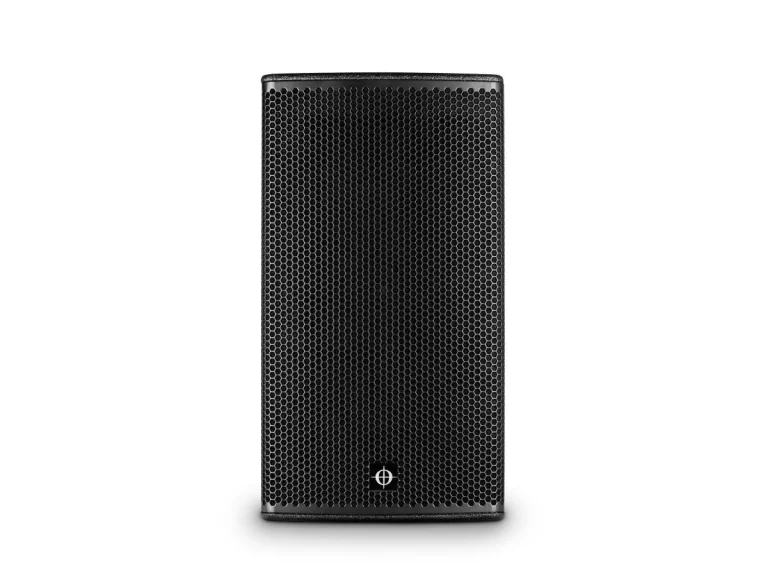

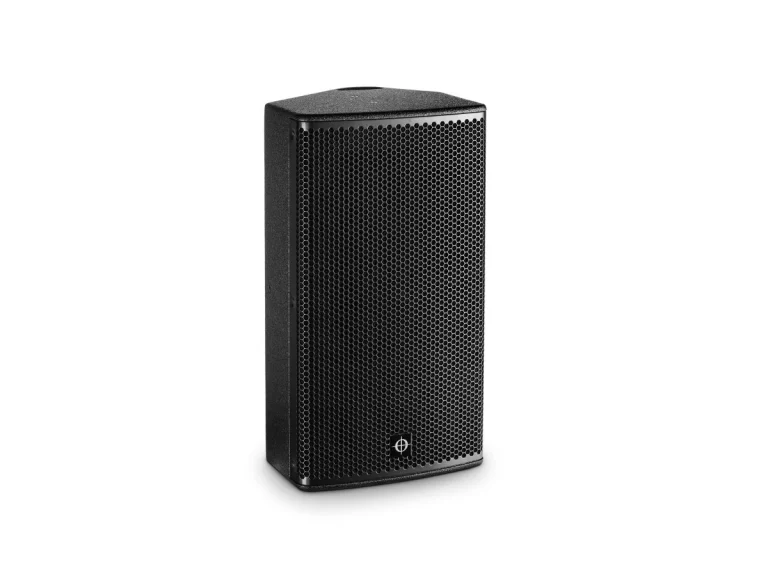

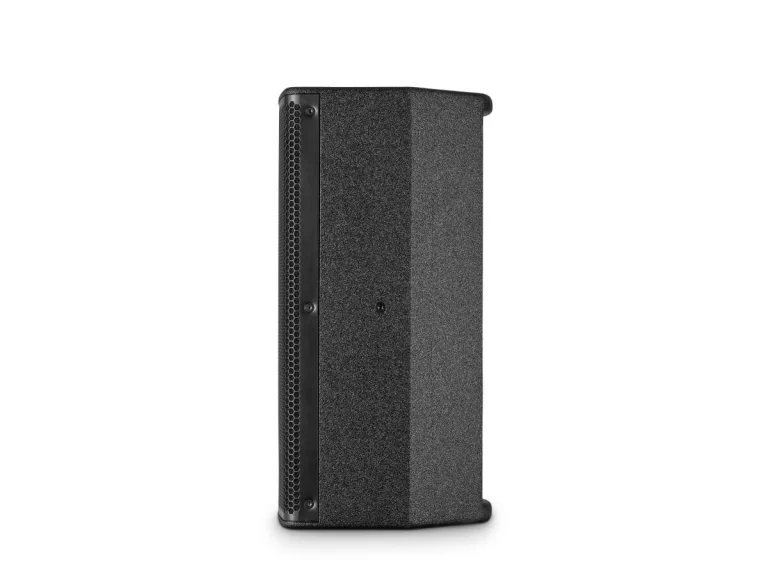

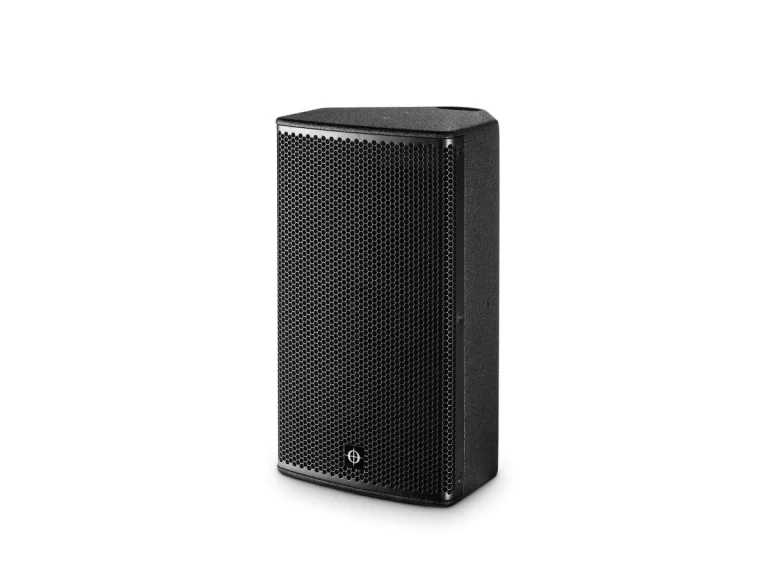

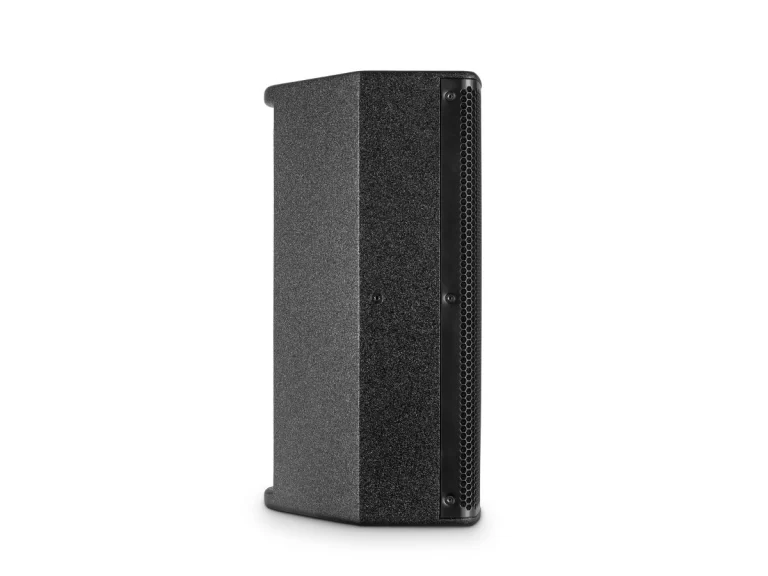

G712-Pro pasyvi kolonėlė
Coda Audio
3555 €
The CODA G712-Pro is a versatile full range three-way loudspeaker system that features a high power 12″ neodymium woofer and a 1.4″ mid/high coaxial neodymium driver coupled to a 90°x60° rotatable elliptical waveguide.
As a three-way system the G712-Pro may be driven passively or with bi-amplification to provide extremely high output. The CODA G712-Pro is a powerful solution for front of house touring, installed PA for theatres, clubs and corporate events or as a stage monitor.
Techninė specifikacija:
Type
3-way full range system, multidesign enclosure
Application
High output short / medium throw or stage monitor
Frequency response
60 Hz – 21 kHz (-3 dB)
Power handling AES / peak (passive)
1000 W / 4000 W
Mid / High AES / peak
150 W / 1300 W
Sensitivity
98 dB
Max. SPL peak (with LINUS10)
143 dB
Dispersion
90° horizontal / 60° vertical
Low frequency
12″ neodymium woofer, 4″ (101.6 mm) voice coil, 1000 W (AES)
High frequency
1.4″ neodymium coaxial driver, 3.5″ (90 mm) + 1.75″ (44.4 mm) voice coil, 150 W + 80 W (AES)
Crossover
750 Hz, 6.3 kHz passsive
Nominal impedance
8 Ω (+1/-1)
Input connectors
2x Neutrik™ NL4MP
Suspension
6x M6 threated points for use with optional U-bracket
Suspension G712-Pro
6x M8 threated points for use with optional U-bracket
Enclosure material
15 / 18 mm birch plywood
Finish
Polyurea coating
Dimensions (WxHxD)
348 x 630 x 320 mm
Net weight
21.5 kg
