Expert 440 Pro Dual mono stiprintuvai
Devialet
14900 €
DUAL-MONO - 2X440 WATTS 6Ω
Dual-Mono lets you soar to whole new levels of performance. With half the distortion of stereo, Dual-Mono configuration features enhanced power supply to each channel.
- THD+N: 0,00025% (440W / 6Ω)
- THD: 0,0001% (10W / 6Ω)
- Signal-to-noise ratio: 133dB
- Advanced phono stage: Yes
General specifications
RANGE
Dual-Mono
FINISH
Hand polished casing carved out of a single aluminium block
COLOR AND FINISH
Dark chrome finish
DIMENSION
Length: 400mm | Width: 400mm | Height: 40mm
WEIGHT
Master : 5.9Kg ; Companion : 5.4Kg
Performance
POWER
2x440WRMS 6Ω
SIGNAL-TO-NOISE RATIO
133dB
THD+N - 130W/6Ω
0,00025%
THD - 10W/6Ω
0,0001%
OUTPUT IMPEDANCE
0,001Ω
DAMPING FACTOR
8000
BANDWIDTH
DC-30kHz (-0.1dB) DC-95kHz (-3dB)
PHASE
0.2° at 20kHz; 0.9° at 40kHz
THERMAL DISTORSION
Below measurement threshold
INTELLIGENCE
3 x SHARC 400 MHz DSP's; 1 x 16 MHz RISC processor; 4 x 40 MHz RISC processors; 1 x 64 MHz RISC processor
SYNCHRONISATION
Up to 8 units

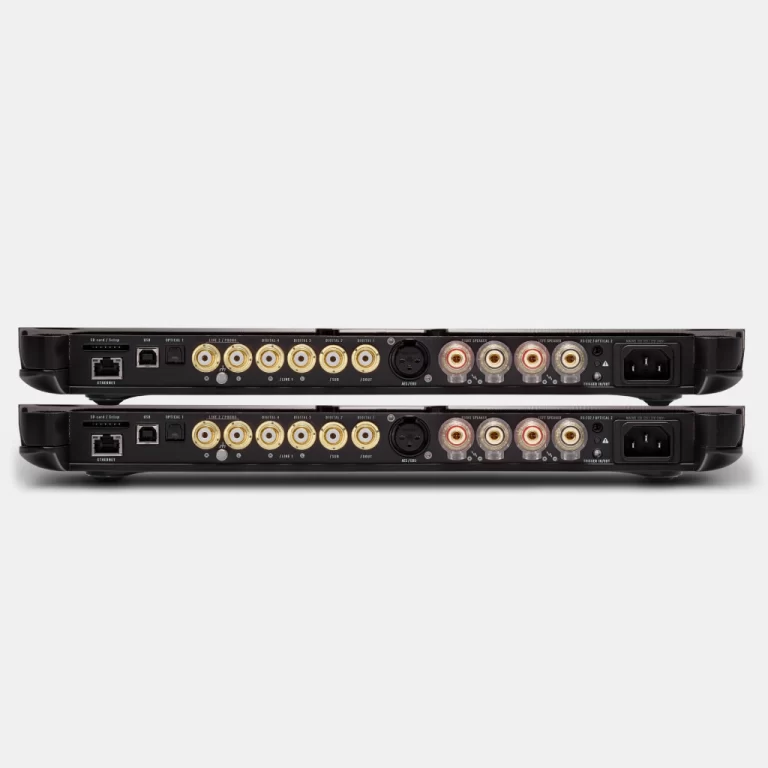

Inputs / Outputs
WI-FI
2.4GHz 802.11 b/g/n Wi-Fi input for the Devialet AIR universal streamer; Supported formats: 16-bit/44.1 kHz PCM to 24-bit/192 kHz PCM
ETHERNET RJ45
RJ45 10/100 Mbps Ethernet input for the Devialet AIR universal streamer; Supported formats: 16-bit/44.1 kHz PCM to 24-bit/192 kHz PCM
USB
USB Audio 2.0 asynchronous input/output; Supported formats: 16-bit/44.1 kHz PCM to 32-bit/192 kHz PCM DSD64 1bit/2.822400MHz and 1bit/3.072000MH
S/PDIF TOSLINK
Supported formats: 16-bit/44.1 kHz PCM to 24-bit/192 kHz PCM
3.5MM MINI-JACK S/PDIF OPTICAL
Supported formats: 16-bit/44.1 kHz to 24-bit/96 kHz
RCA 3 & RCA 4 CONNECTORS
Line-in stereo analogue input - 24-bit/96 kHz or 24-bit/192 kHz sampling; T.I. PCM4202 A/D convertor; Accepts voltages up to +/- 10V; Maximum recommended level: 4 VRMS; Analog input stereo phono level - 16-bit/44.1 kHz PCM to 24-bit/192 kHz PCM; T.I. PCM4202 A/D convertor; Accepts voltages up to +/- 100mV; Maximum recommended level: 15mVRMS
1 OR 2 COAXIAL S/PDIF DIGITAL INPUTS
Supported formats: 16-bit/44.1 kHz PCM to 24-bit/192 kHz PCM DSD64 1bit/2.822400MHz and 1bit/3.072000MHz
MINI-JACK 3.5MM
3.5mm mini-jack trigger connector
SPEAKER OUTPUT
4mm banana plugs, stripped cables or fork connectors; Adjustable from 30 WRMS to 440 WRMS via the configurator; Compatible with all speakers, from 1Ω to 16Ω; Output impedance: 0.001Ω
