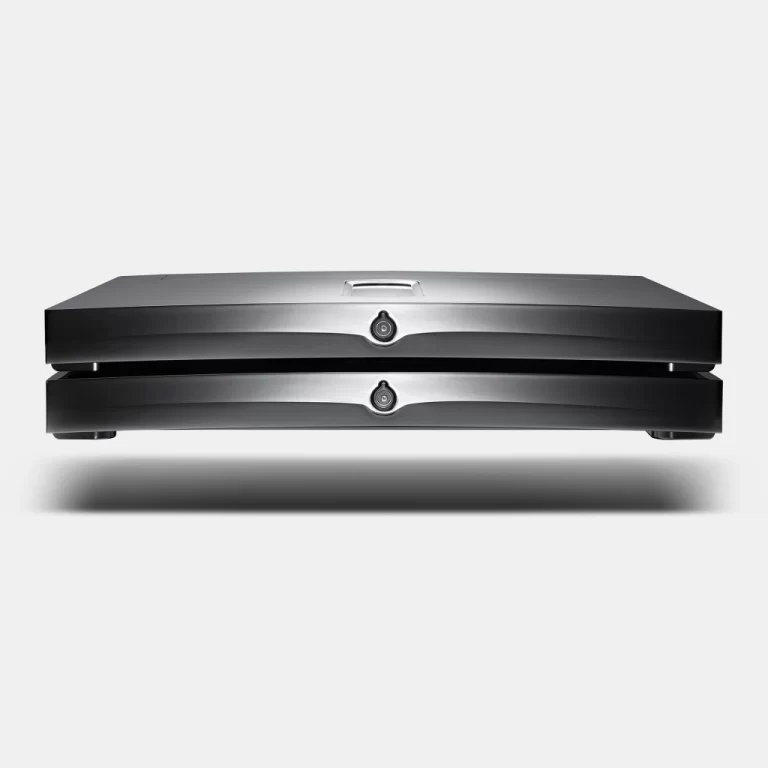

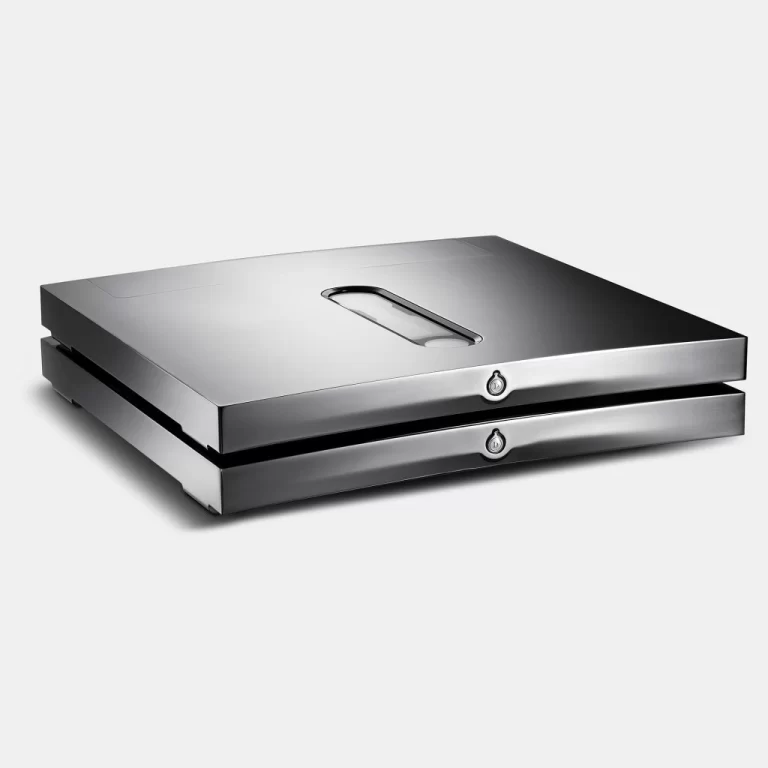

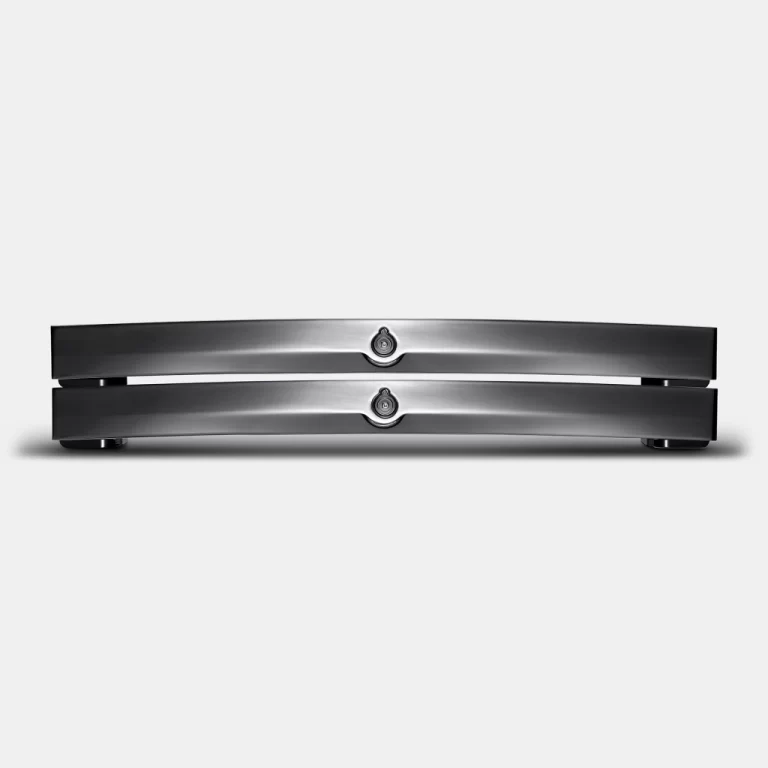

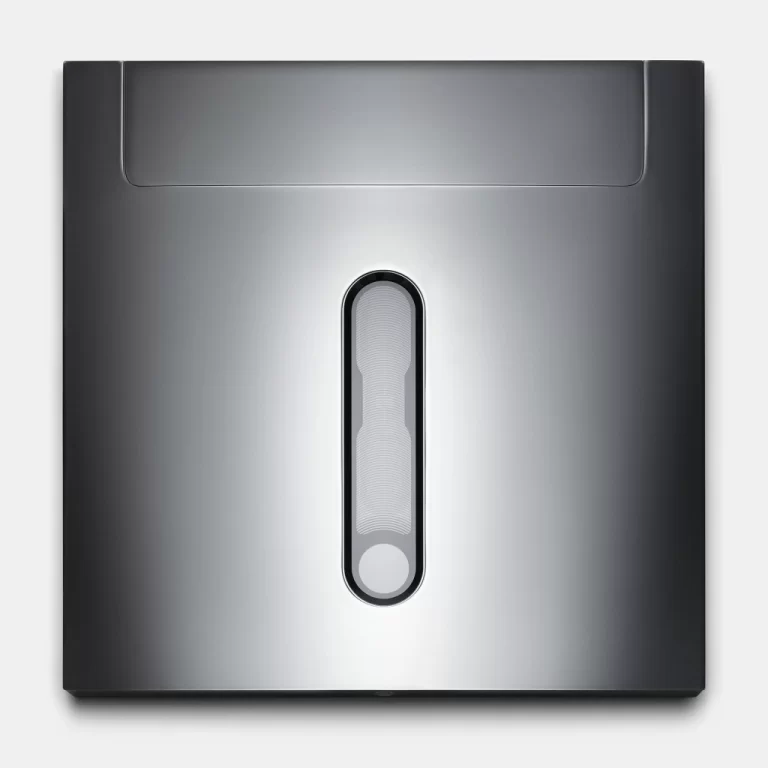

Expert 1000 Pro Dual mono stiprintuvai
- THD+N: 0,00025% (1000W / 6Ω)
- THD: 0,0001% (10W / 6Ω)
- Signal-to-noise ratio: 133dB
- Advanced phono stage: Yes
- Solid copper base plate: Yes
General specifications
Dual-Mono

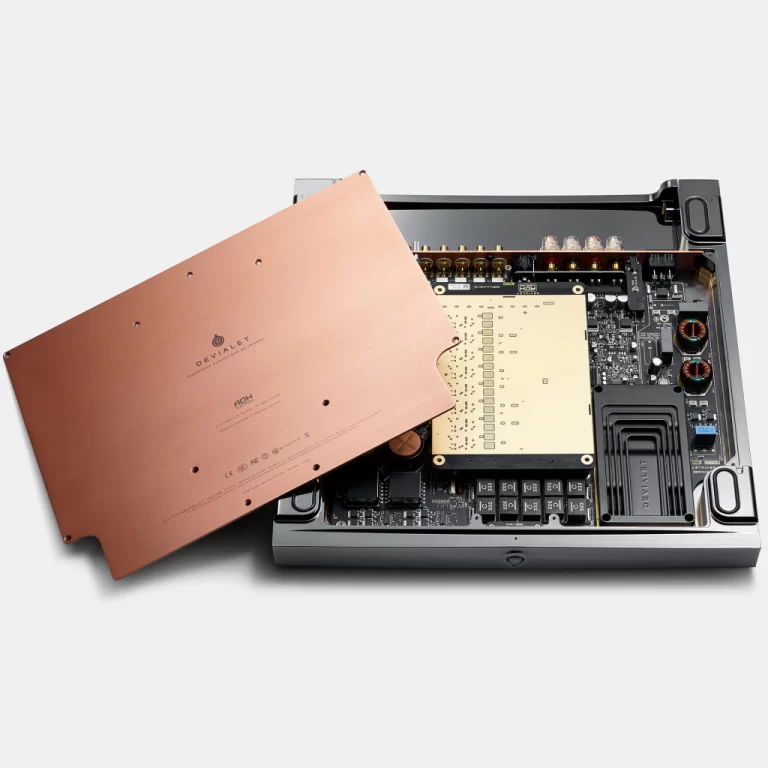

Hand polished casing carved out of a single aluminium block 100% pure copper bottom plate for optimal thermal dissipation
Dark chrome finish
Length: 400mm | Width: 400mm | Height: 40mm
Master : 9,7Kg Companion : 9,5Kg
Performance
2x1000Wrms 6Ω
133dB
0,00025%
0,0001%
0,001Ω
8000
DC-30kHz (-0.1dB) DC-95kHz (-3dB)
0.2° at 20kHz; 0.9° at 40kHz
Below measurement threshold
3 x SHARC 400 MHz DSP’s; 1 x 16 MHz RISC processor; 4 x 40 MHz RISC processors; 1 x 64 MHz RISC processor
Up to 8 units

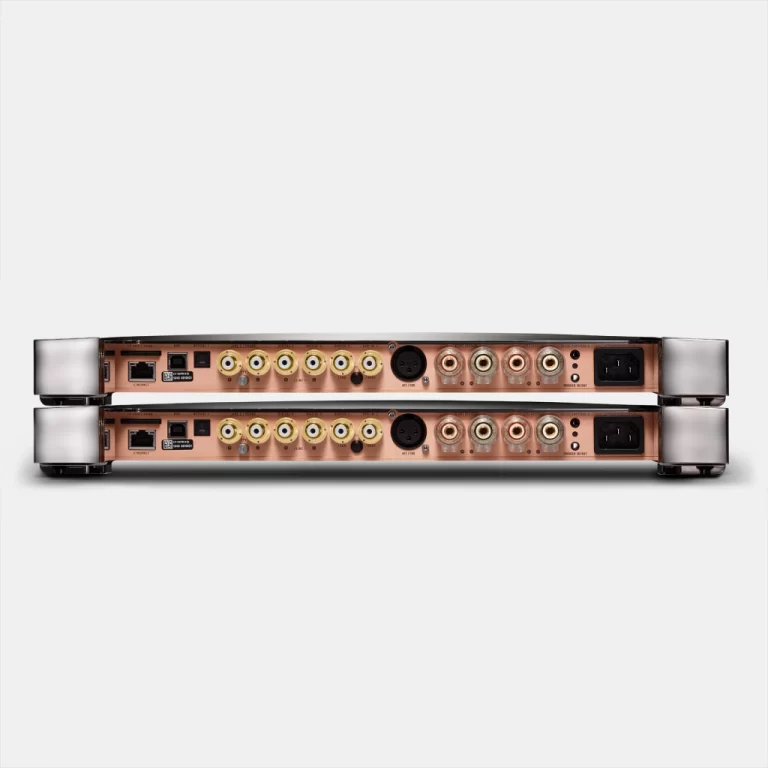

Inputs / Outputs
2.4GHz 802.11 b/g/n Wi-Fi input for the Devialet AIR universal streamer; Supported formats: 16-bit/44.1 kHz PCM to 24-bit/192 kHz PCM
RJ45 10/100 Mbps Ethernet input for the Devialet AIR universal streamer; Supported formats: 16-bit/44.1 kHz PCM to 24-bit/192 kHz PCM
USB Audio 2.0 asynchronous input/output; Supported formats: 16-bit/44.1 kHz PCM to 32-bit/192 kHz PCM DSD64 1bit/2.822400MHz and 1bit/3.072000MH
Supported formats: 16-bit/44.1 kHz PCM to 24-bit/192 kHz PCM
Supported formats: 16-bit/44.1 kHz to 24-bit/96 kHz
Line-in stereo analogue input – 24-bit/96 kHz or 24-bit/192 kHz sampling; T.I. PCM4202 A/D convertor; Accepts voltages up to +/- 10V; Maximum recommended level: 4 VRMS; Analog input stereo phono level – 16-bit/44.1 kHz PCM to 24-bit/192 kHz PCM; T.I. PCM4202 A/D convertor; Accepts voltages up to +/- 100mV; Maximum recommended level: 15mVRMS
Supported formats:16-bit/44.1 kHz PCM to 24-bit/192 kHz PCM; DSD64 1bit/2.822400MHz and 1bit/3.072000MHz
3.5mm mini-jack trigger connector
4mm banana plugs, stripped cables or fork connectors; Adjustable from 30 WRMS to 1000 WRMS via the configurator; Compatible with all speakers, from 1Ω to 16Ω; Output impedance: 0.001Ω
