Expert 220 Pro stereo stiprintuvas

Devialet
7990 €
STEREO - 2X220 WATTS 6Ω The Expert 220 Pro features full connectivity and the world’s most advanced phono stage, designed for demanding vinyl lovers. Double up with a second system for the ultimate Expert 440 Pro experience. A seamless introduction to the extreme performance of dual mono configuration.
  • THD+N: 0,0005% (220W / 6Ω)
  • THD: 0,00025% (10W / 6Ω)
  • Signal-to-noise ratio: 130dB
  • Advanced phono stage: Yes
Expert 220 Pro stereo stiprintuvas

Specifications

RANGE
Stereo

FINISH
Hand polished casing carved out of a single aluminium block

COLOR AND FINISH
Dark chrome finish

DIMENSION
Length: 383mm | Width: 383mm | Height: 40mm

WEIGHT
5,9Kg

Performance

POWER
2x220Wrms 6Ω

SIGNAL-TO-NOISE RATIO
130dB

THD+N - 130W/6Ω
0,0005%

THD - 10W/6Ω
0,00025%

OUTPUT IMPEDANCE
0,001Ω

DAMPING FACTOR
8000

BANDWIDTH
DC-30kHz (-0.1dB) DC-95kHz (-3dB)

PHASE
0.4° at 20kHz; 1.8° at 40kHz

THERMAL DISTORSION
Below measurement threshold

INTELLIGENCE
3 x SHARC 400 MHz DSP's; 1 x 16 MHz RISC processor; 4 x 40 MHz RISC processors; 1 x 64 MHz RISC processor

SYNCHRONISATION
Up to 8 units

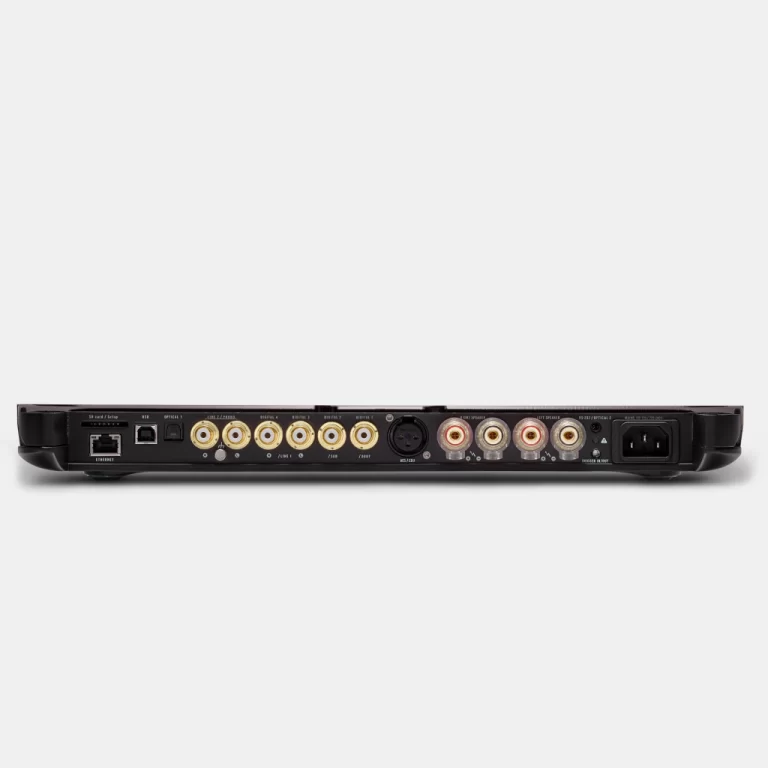

Inputs / Outputs

WI-FI
2.4GHz 802.11 b/g/n Wi-Fi input for the Devialet AIR universal streamer; Supported formats: 16-bit/44.1 kHz PCM to 24-bit/192 kHz PCM

ETHERNET RJ45
RJ45 10/100 Mbps Ethernet input for the Devialet AIR universal streamer; Supported formats: 16-bit/44.1 kHz PCM to 24-bit/192 kHz PCM

USB
USB Audio 2.0 asynchronous input/output; Supported formats: 16-bit/44.1 kHz PCM to 32-bit/192 kHz PCM; DSD64 1bit/2.822400MHz and 1bit/3.072000MH

S/PDIF TOSLINK OPTICAL
Supported formats: 16-bit/44.1 kHz PCM to 24-bit/192 kHz PCM

3.5MM MINI-JACK S/PDIF OPTICAL
Supported formats:16-bit/44.1 kHz to 24-bit/96 kHz

RCA 3 & RCA 4 CONNECTORS
Line-in stereo analogue input - 24-bit/96 kHz or 24-bit/192 kHz sampling; T.I. PCM4202 A/D convertor; Accepts voltages up to +/- 10V; Maximum recommended level: 4 VRMS; Analog input stereo phono level; 16-bit/44.1 kHz PCM to 24-bit/192 kHz PCM;T.I. PCM4202 A/D convertor; Accepts voltages up to +/- 100mV; Maximum recommended level: 15mVRMS

1 OR 2 COAXIAL S/PDIF DIGITAL INPUTS
Supported formats: 16-bit/44.1 kHz PCM to 24-bit/192 kHz PCM; DSD64 1bit/2.822400MHz and 1bit/3.072000MHz

MINI-JACK 3.5MM
3.5mm mini-jack trigger connector

SPEAKER OUTPUT
4mm banana plugs, stripped cables or fork connectors; Adjustable from 30 WRMS to 440 WRMS via the configurator; Compatible with all speakers, from 1Ω to 16Ω; Output impedance: 0.001Ω
