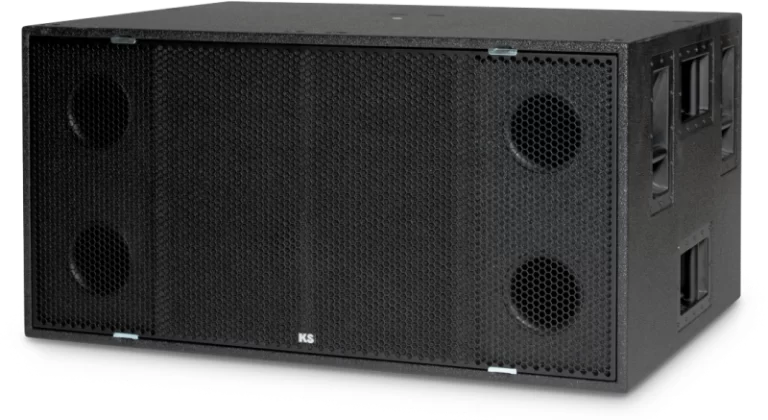

TPD SUB žemų dažnių kolonėlė

KS Audio
9438 €
With T SUB, KS AUDIO has set the bar for impressive subwoofer performance very high already. With the new selfpowered TPD SUB, the bar is pushed a good way further upwards. An impressive bass fundament that delivers a very deep, powerful yet clean, and dry sound. The TPD SUB is the best choice when you need quick pulse response, pressure and power reserves. The power amplifier has performance of the highest quality delivering up to 8000 watts of peak power and was especially developed for the TPD SUB, powered by a three-phase power supply. Like any KS AUDIO speaker system, TPD SUB has a high audio-quality that is not compromised by its power. This is achieved by using eight especially KS designed heavy duty 10”- long excursion woofers with a 30 mm voice-coil. Low moving mass combined with Push-Pull technology produces a precise in-and out transient response. The drivers are paired in 4 separate, specially engineered enclosures with exact acoustically tuned properties. This minimizes any possible distortion. In combination with a perfectly tuned controller module with optional DANTE TM interface, the TPD SUB is the perfect tool for the demanding sound engineer. The speaker cabinet construction is, like any KS AUDIO system, built from birch plywood with durable PU-coating. All RAL colors available. Handles, 4 blue wheels and a protective grill, with or without acoustic foam, are further features of this premium product. Input mono sum as a standard. TPD Sub is the perfect low extension for many KS AUDIO mid-high units and in particular for KS AUDIO Line Arrays.
TPD SUB žemų dažnių kolonėlė

Techninė specifikacija:

frequency response + / -3dB

38-120Hz +-3dB (32Hz -6dB)


output SPL

143dB peak


dispersion

spherical


amplifier

2x PWM bridge mode, SMPS 3P


drivers

8x 10“ cone – very long excursion


power

4000W cont. 8000W peak


upper x-over

70/120Hz


input connectors

Analog, AES/EBU, DANTE


output connectors

Analog, AES/EBU, DANTE


cabinet

birch plywood


grill

stainless steel honeycomb 6 sided + acoustic foam


finish

charcoal black polyurethane


dimensions (height x width x depth)

580 x 1160 x 880 mm


weight

110 kg


features

4x heavy duty wheels, 8 handles


TPD SUB žemų dažnių kolonėlė

TPD SUB žemų dažnių kolonėlė

KS Audio
9438 €
