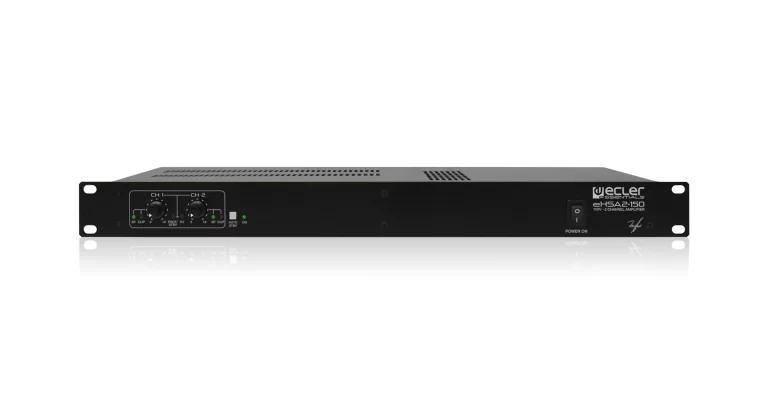

eHSA2-150 100V stereo stiprintuvas
Ecler
953 €
High Impedance Stereo Amplifier
ECLER ESSENTIALS eHSA2-150 is a stereo amplifier with high impedance powered outputs. A very high efficiency and its auto stand-by function provide this amplifier with a true green profile
Key Features
- 2 analogue audio inputs and 2 x150 WRMS @ 70V / 100V powered audio outputs

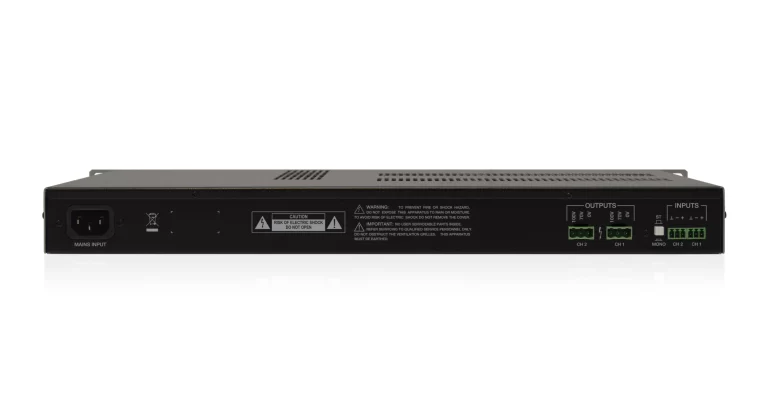

- Euroblock input and output connectors
- High efficiency, auto stand-by function and convection cooling (fanless, 100% silent)
- Thermal protection
- Overload protection
- Anti-clip system
- Volume control knobs on front panel
POWER @ 1kHz 1% THD, 100V output
1 Channel @ 66Ω
145 WRMS
All Channels @ 66Ω
142 WRMS
Frequency response (-1 dB, -3dB)
20Hz - 30kHz
Filter (High-Pass) 3rd order Butterworth
50Hz
THD+Noise @ 1kHz Full Power
<0.05%
S+N/N 20Hz - 20kHz @ 1W/4Ω
>85dB
CMRR
>55dB
Damping factor 1kHz @ 8Ω
>150
Channel crosstalk @ 1kHz
>55dB
Input Sensitivity / Impedance
0dB/>20kΩ
Anticlip @ 2dBV input
<1% THD
Power consumption
pink noise, 1/3 power @ 4Ω
139W
Idle
19W
STBY
13W
Dimensions (Handle excluded)
440x44x161mm
Weight
6.05kg
