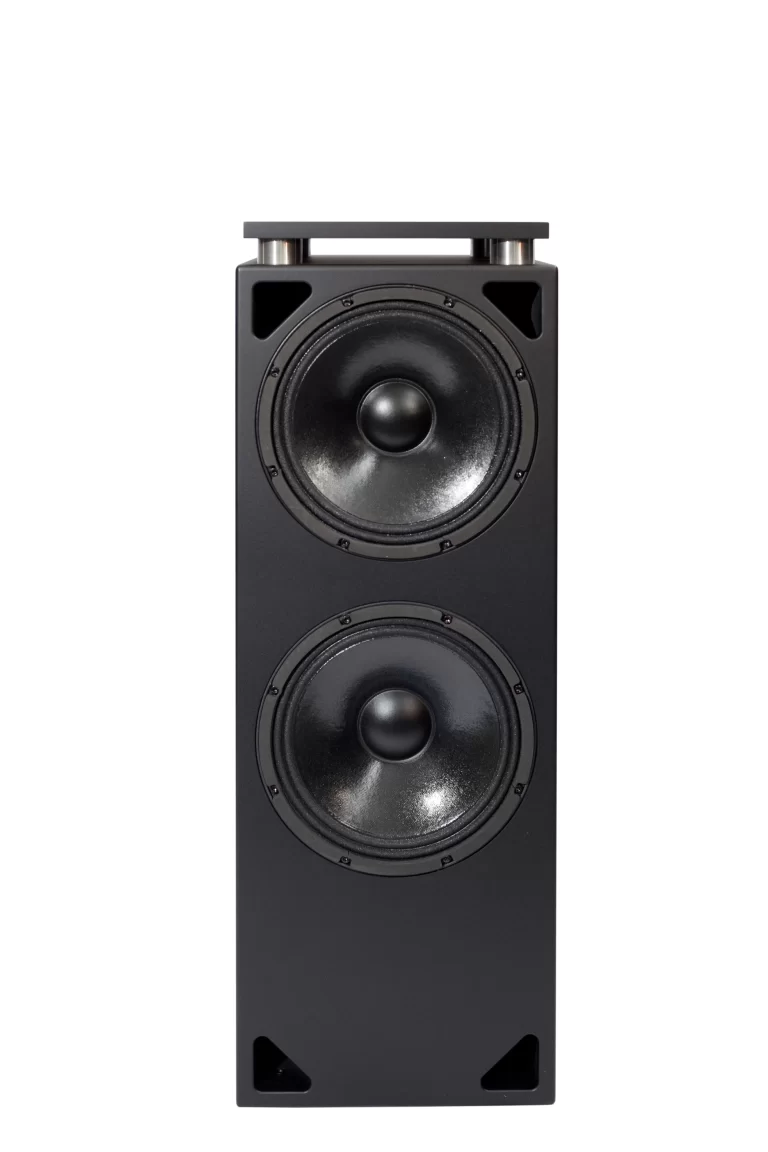

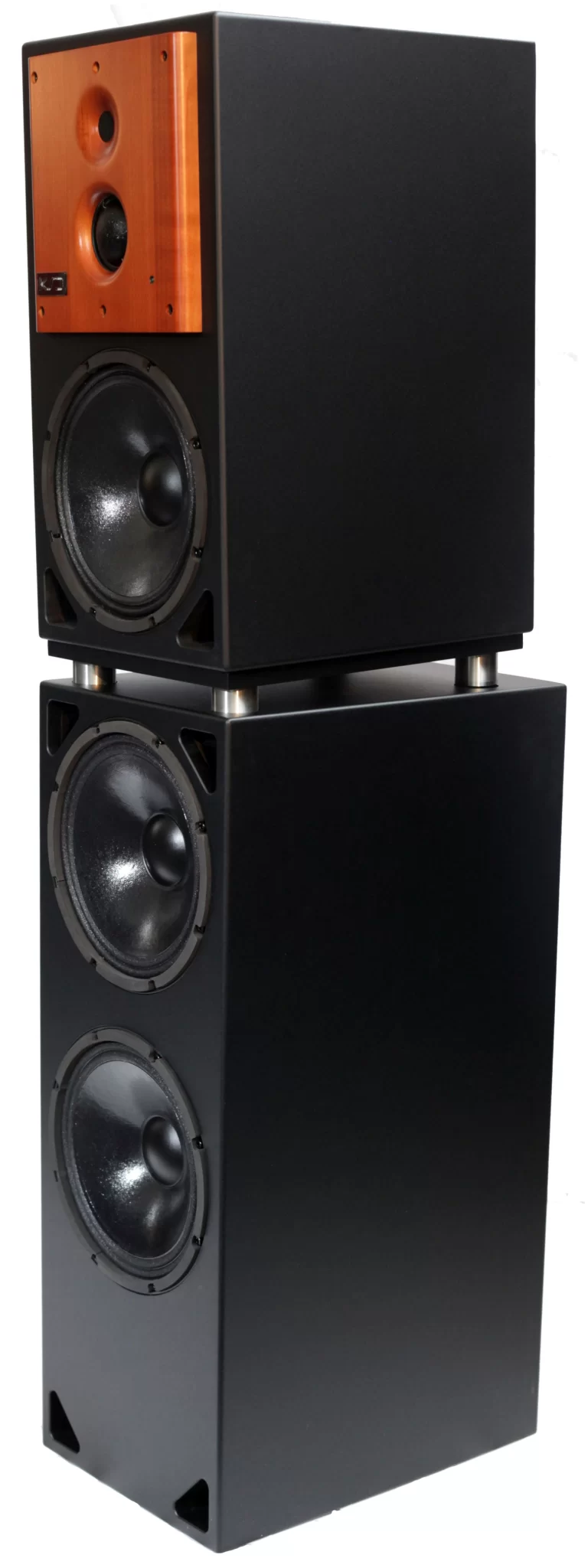

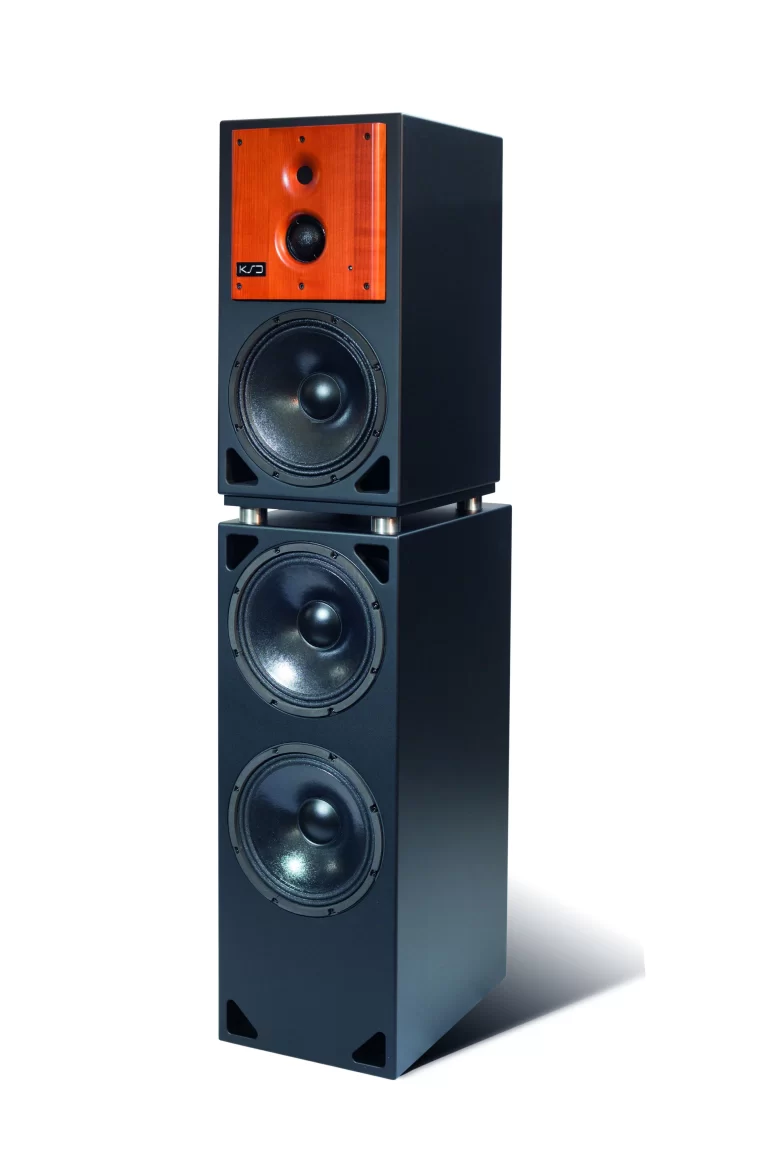

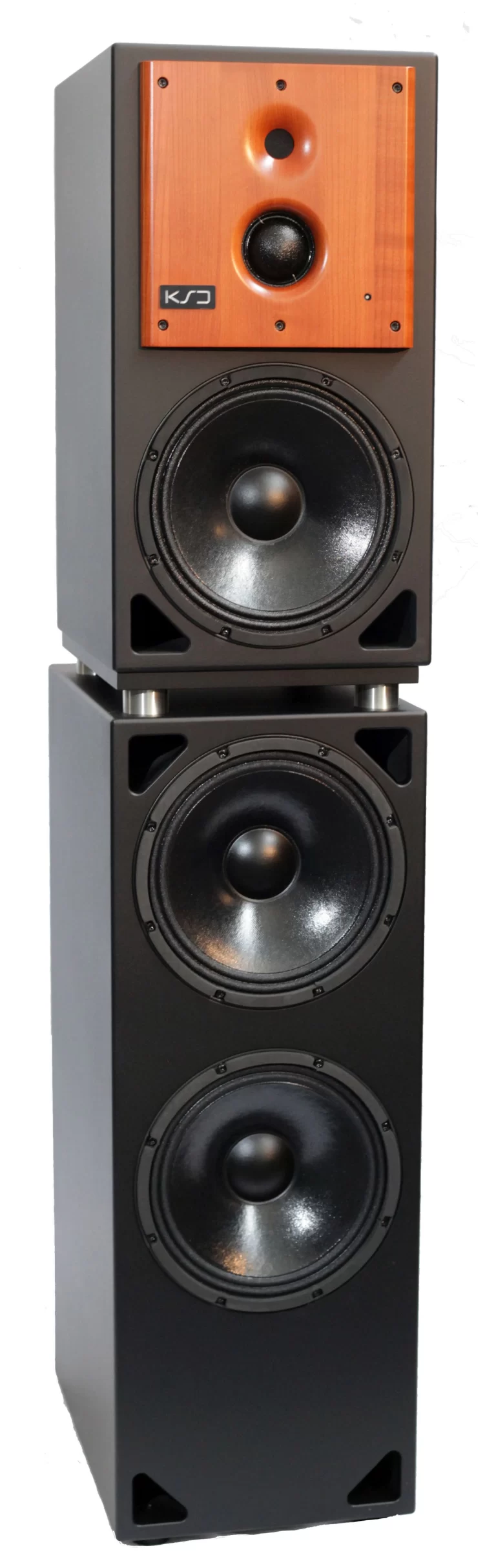

AB300 studijos monitorius

KS Digital
6749 €
The acoustic advantages of the AB300:
  • phase-linear playback at minimum latency (lt]5msec)

  • high pulse resistance due to 10" high-performance bass, 2" dome midrange driver and 1" high-performance tweeter driver
  • adjustable to room and installation position by means of 8 filters (bells/shelvings)
  • analog or digital control (24 bit ADC) remotely controllable
  • rotatable mid-high part
  • highest neutrality in the tonal and time structure of the signal



The design of the amplifiers and power supplies ensures extremely low-distortion playback with minimal distortion. Our patented FIRTEC system filters ensure phase-linear, time-correct reproduction over the entire frequency range. The waveguides hide the cabinet edges and linearize the frequency response in addition to the digital signal processing. The 1” high-frequency ring gradiator used ensures low distortion reproduction even at higher levels. The AB300 plays all formats, from CD format to UHD audio, whether connected digitally via the analog input with 24 bit / 192 KHz AD converter or losslessly connected directly.

Techninė specifikacija

AD / DA converter
24 bit sigma delta, 64 x oversampling

Digital IN
AES3 format , 32 – 192KHz

Analog IN
XLR-symmetric

DSP
FIRTEC™ equalization, FIR-

Process
crossover, limiter, 6 user filter patent: 19823110

Room equalization
5 peakfilter and FIRTEC™ system equalization

Chassis
1'' radiator, 3" midrange-cone 3 x 10'' bassunit

Amplifier
150W / 250 W / 250 W / 500W peak

SPL
120dB cont./126dB peak

Remote control
KSD-RC

Frequency range
24 - 24000 Hz (+/- 3 dB)

Dimensions
142 x 30 x 40 cm
