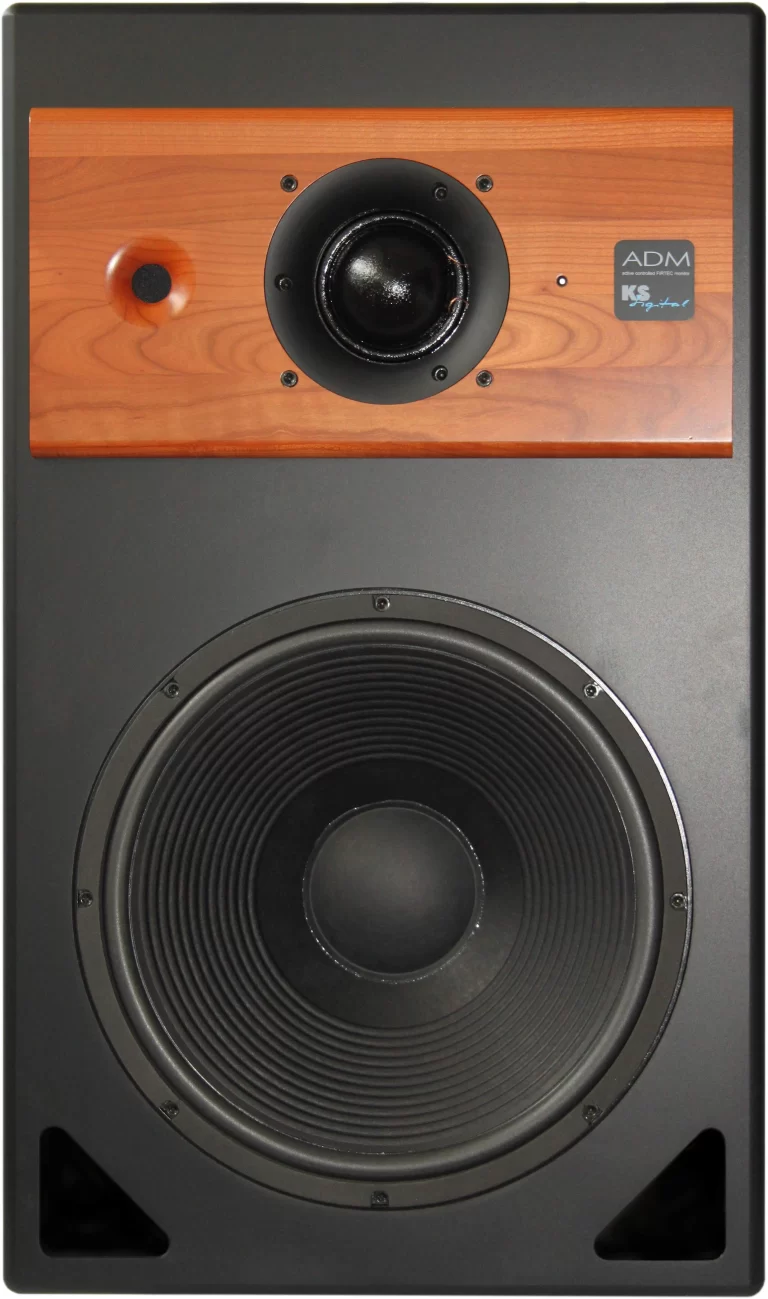

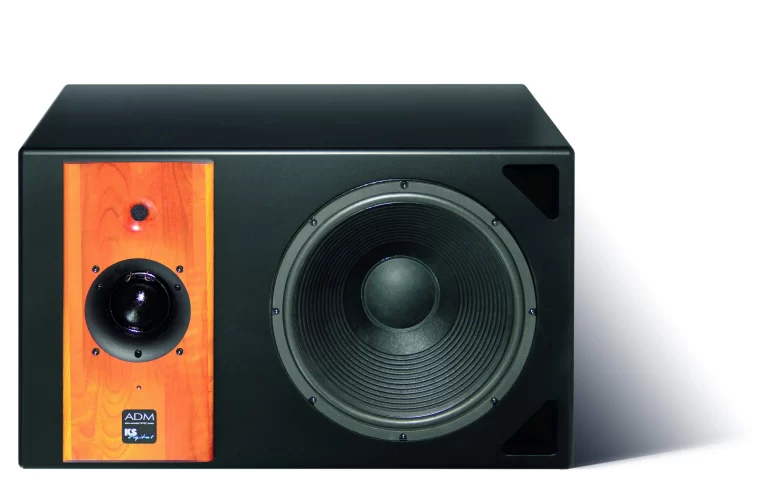

ADM15 studijos monitorius

KS Digital
7919 €
The ADM15 is a 3 way active digital processed mainmonitor for high performance applications.By their dimension the ADM15 is an ideal replacement for Genelec 1038 or similar wall-mountedmonitors. It can be utilized as the sole reference monitor in professional recording, broadcastor mastering studios. The signal processing like crossover, equalisation, time alignment a.s.o iscompletely in the digital domain. The linking to the recording environment happens directly to thedigital signal source or by our stacked Sigma-Delta-Technology with a 27 bit and 64 oversamplingconverter with dynamic range of 130dB. An internal processing with 32 bit floating point ensures aninternal dynamic range of 1500 dB. An additional KSdigital Patent (Pat Nr. 198 23 110) for signalslower than 24 bits processes these signal on a higher level for the internal signal processing. So theuser has a fully analog workflow without any digital limitations. Five EQ’s for a quick manual adap-tation, as well as the possibility to calibrate the FIR filters for the listening area to build a individualsetup for your control room. This can be done either on the loudspeaker itself or cableconnectedwith the Ksdigital Remote Control RC-100 or by our webserver-based software called FIRControl.The MOSFET powerstages, with hand-selected audio-transistors, transport the sound with a slowrate of 80 V/µs and 150W for highrange, 200W for the midrange and 500W for the 15“ bass driver.
ADM15 studijos monitorius

Techninė specifikacija

AD / DA converter
27 bit sigma delta, 64 x oversampling

Digital IN, OUT
AES3 format, 32 - 96 (110) KHz, 192 KHz

Analog IN, OUT
XLR-symmetric, active bypass connector

DSP
60 MHz 32 bit floatingpoint, 1500 dB dynamic

Process
FIRTEC™ equalization, FIR-crossover, limiter, 2 FIR presets, 5 user filter patent: 19823110

Room equalization
5 peakfilter and FIRTEC™ system-equalization

Chassis
1'' radiator, 3'' midrange dome driver, 15" high performance bass unit

Amplifier
100 W / 200 W / 400 W MOSFET technology

SPL
125 dB peak

Remote control
gain control and input switch (optional)

Frequency range
25 - 22000 Hz (+/- 3 dB)

Special
X.1 setup with common gain control

Dimensions
81 x 48 x 42 cm, 28 kg
