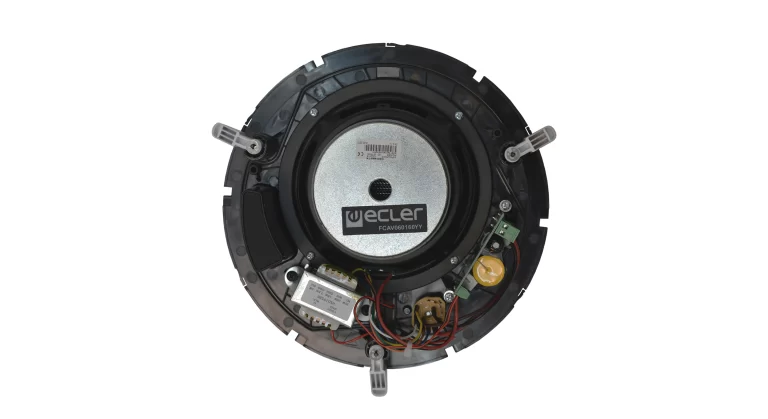

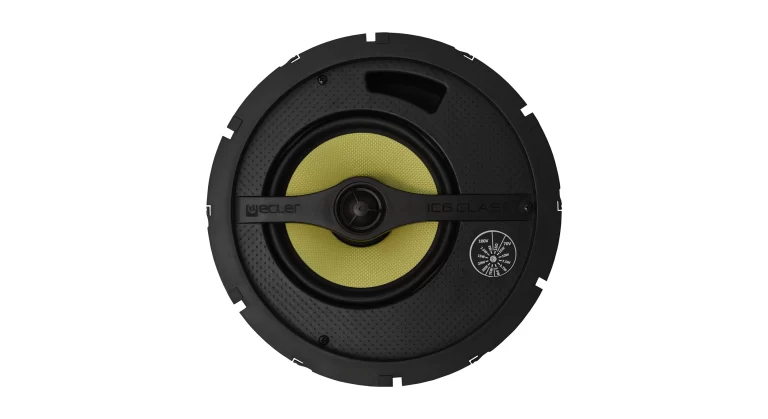

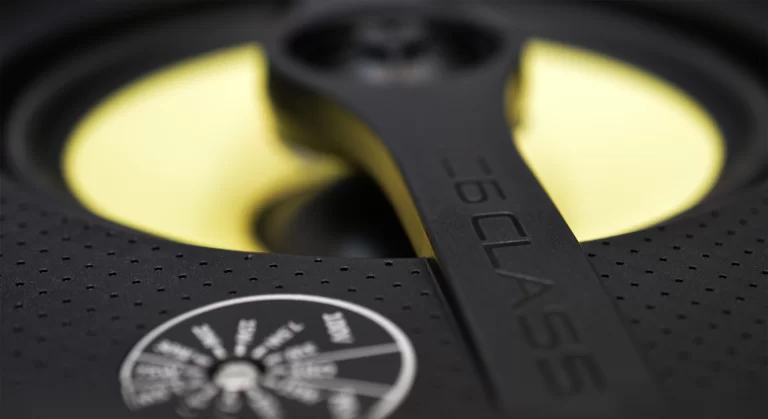

IC6CLASS-TR įmontuojama kolonėlė
Ecler
275 €
In-ceiling / In-wall High-end Loudspeaker
ECLER IC6CLASS-TR is a high and low impedance 2-way loudspeaker integrates a very careful and efficient selection of components (6" woofer + 1" tweeter), together with a mechanical design that provide a high quality audio ("Hi-Fidelity" profile sound) and a very fast installation process, just using a basic set of tools.
Key Features
- 2-way loudspeaker, 75 WRMS
- 16 Ω impedance, allowing for multiple units connected in parallel to a standard audio amplifier
- High impedance built-in transformer, allowing for multiple units connected in parallel to a 70V / 100V line audio amplifier (5 different power tappings available)
- 16 Ω or high impedance power selection accessible from the front panel, once the loudspeaker is already installed in the ceiling
- 6,5″ Kevlar® woofer
- 1″ Silk dome (ACCW) tweeter

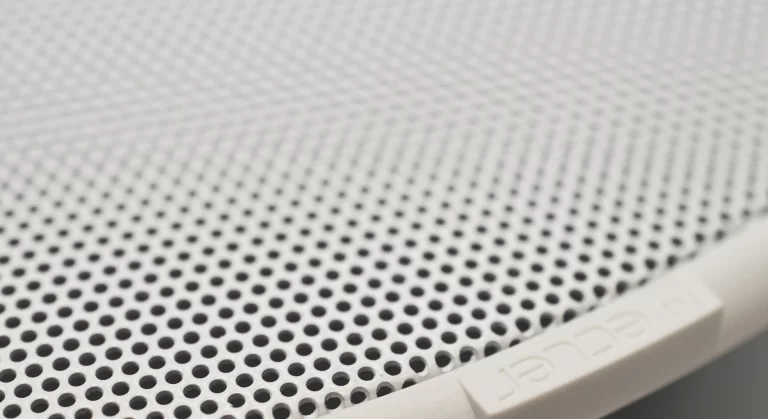

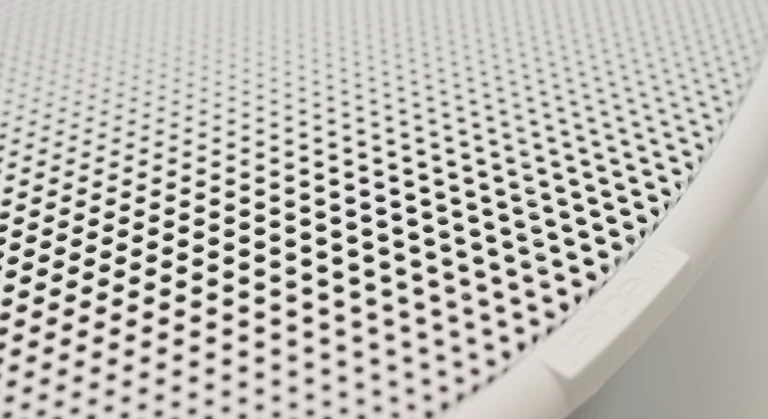

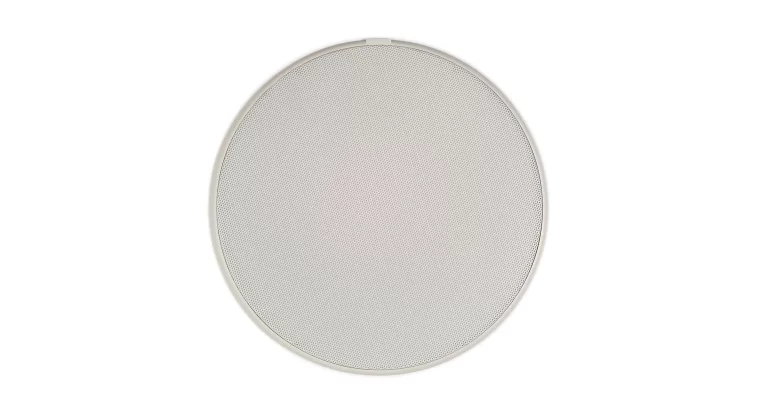

- Aluminium front grill
- Fast installation procedure using a basic set of tools
- EASE files available
Techninė specifikacija:
Nominal low impedance
16Ω
RMS power
75W
Power selector (70V)
1.5, 3.7, 7.5, 10, 15W
Power selector (100V)
3, 7.5, 15, 20, 30W
Frequency response (-6dB)
45Hz – 22kHz
Sensitivity 1W/1m
86dB
External diameter
270mm
Internal diameter
224mm
Recommended cut out diameter
227mm
Required depth
95mm
Weight
2,5Kg
