Hilo keitiklis
Lynx Studio

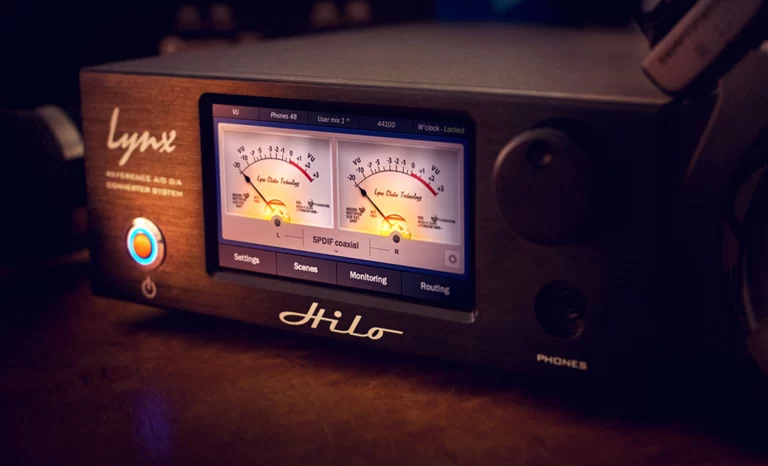

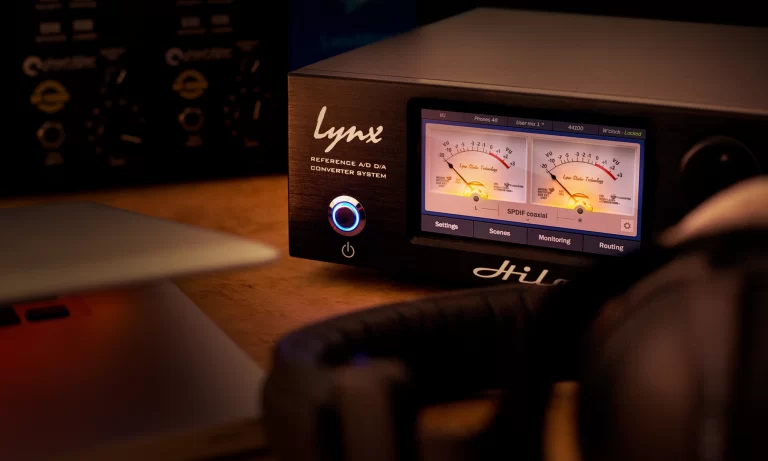

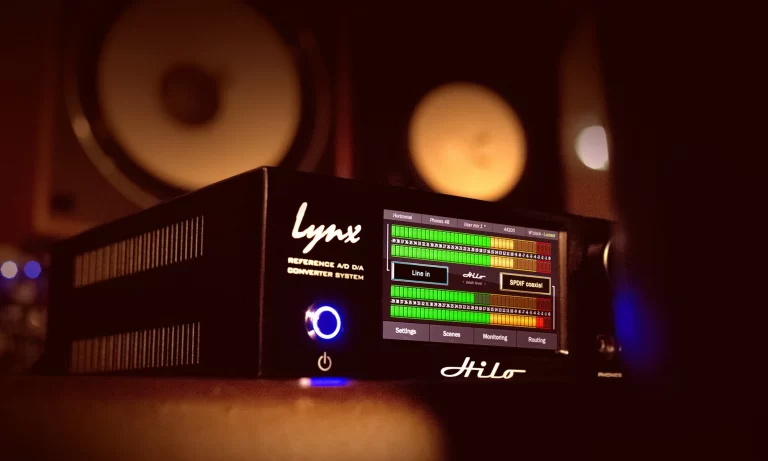

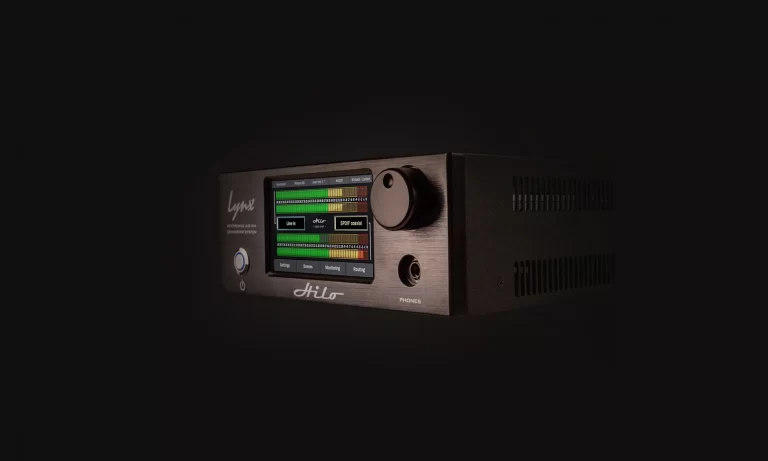

Hilo is for professionals who demand the purest audio quality. Engineered to be a true all-in-one device, Hilo offers class-leading AD/DA conversion, built-in metering and analysis, multiple ins and outs, hyper-flexible routing and monitoring control — all easily saved and recalled via touchscreen, whatever work you do.
Line in L/R
THD+N
-114dB @1kHz, -1dBFS, 20kHz filter, +22dBu trim
Dynamic range
121dB, A-weighted, -60dBFS signal method
Frequency response
±0.01dB, 20–20kHz
Crosstalk
-140dB maximum @ 1kHz, -1dBFS signal
Full-scale trim settings
+0dBV, +2dBV, +4dBV, +6dBV, +18dBu, +20dBu, +22dBu, +24dBu
Monitor out L/R
THD+N
-107dB @1kHz, -1dBFS, 20kHz filter, volume at max
Dynamic range
121dB, A- weighted, -60dBFS signal method
Frequency response
±0.02dB, 20-20kHz
Crosstalk
-135dB maximum @ 1kHz, -1dBFS signal
Output level at max
+24dBu or +10dBu, jumper selectable
Line out L/R
THD+N
-109dB @1kHz, -1dBFS, 20kHz filter, +22dBu trim
Dynamic range
121dB, A-weighted, -60dBFS signal method
Frequency response
-135dB maximum @ 1kHz, -1dBFS signal
Crosstalk
-135dB maximum @ 1kHz, -1dBFS signal
Full-scale trim settings
+0dBV, +2dBV, +4dBV, +6dBV, +18dBu, +20dBu, +22dBu, +24dBu
Headphone out
THD+N
-107dB @1kHz, -1dBFS, 20kHz filter, volume at max
Dynamic range
121dB, A-weighted, -60dBFS signal method
Frequency response
±0.02dB, 20-20kHz
Crosstalk
-130dB maximum @ 1kHz, -1dBFS signal
Output level at max
+19dBu
