ALMA24 procesorius
Ecler
760 €
Digital Loudspeaker Manager
ECLER ALMA24 and ECLER ALMAcard are digital loudspeaker managers including 2 audio inputs and 4 audio outputs, USB interface and 2 volume remote control ports (0-10VDC).

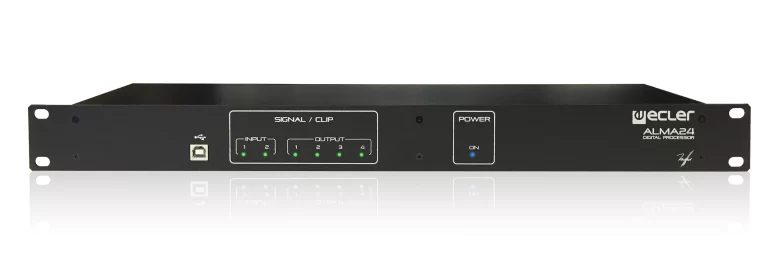

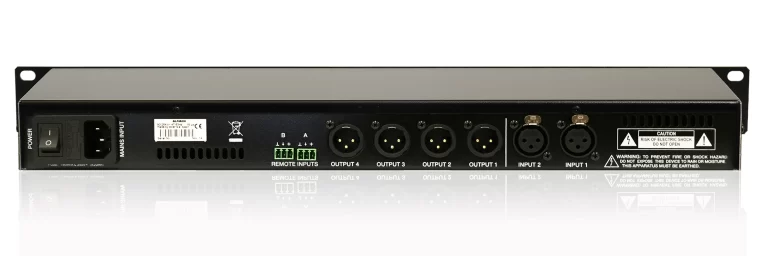

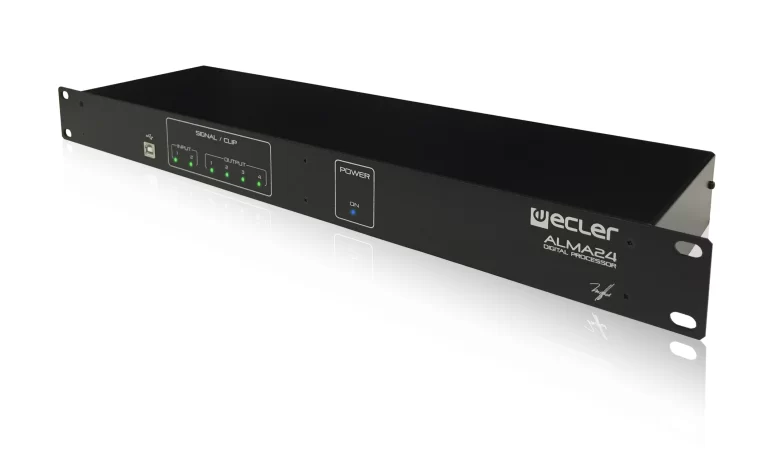

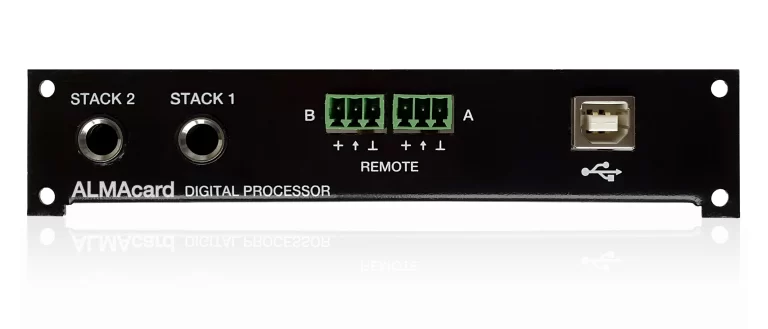

ALMA24 is a 1RU stand-alone processor, meanwhile ALMAcard is its card plug-in interface version, compatible with the DPA amplifier series (it is inserted into its rear panel interface card bay).
Key Features
- 2 audio inputs x 4 audio outputs, all balanced
- 24 bits / 48 kHz DSP processing
- USB interface and EclerCOMM Manager compatibility
- DSP processing:
– GAIN, MUTE, POLARITY, etc., per input or output
– 8 parametric EQ filters per input / 8 parametric EQ filters per output
– Butterworth, Linkwitz-Riley or Bessel Crossover filters at inputs and outputs (up to 48 dB / oct)
– Inputs and outputs delay
– Peak & RMS compressor / limiter at inputs & outputs, including make-up gain
– 2 LINK groups (output channels link) - System templates to create user configurations
- 20 user Presets
- Password protection system
Input section
Sensitivity
0dBV
Input impedance
>20k electronically balanced
CMRR
>55dB (20Hz ÷ 20kHz)
Input connector
XLR3 female
Output section
Nominal Output level
0dBV
Output impedance
300Ω electronically balanced
Output connector
XLR3 male
A/D & D/A
24bit / 48kHz
Frequency response
<10Hz ~ 20kHz
Output noise floor (FFT)
>115dB (from 20Hz to 20kHz)
THD + Noise
< 0.0028% (1kHz, 1Vrms)
Crosstalk
>95dB, 30Hz ÷ 20kHz
Crossovers filters
Slopes
6, 12, 18, 24 or 48dB/octave (Filter type dependant)
Type
Linkwitz-Riley, Butterworth or Bessel
General
Mains
90÷264VAC 50/60Hz
Power consumption
16VA
Dimensions W x H x D
482.6 x 44 x 120mm
Weight
1.75kg
