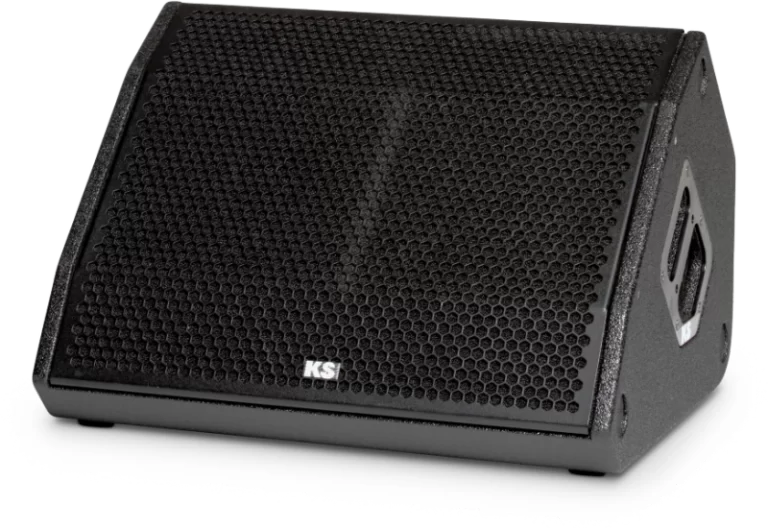

Pasyvus monitorius CM 215

KS Audio
3146 €
-Excellence in modular performance- The latest technology incorporated in our sophisticated and modular stage/front of house monitor line-up, featuring multi-functional, beautiful design and best audio performance available at compact footprint. In addition, the user-friendly design of any KS-AUDIO monitor fulfills true configuration as front of house sound reinforcement system in general. The designated 15”/2” bi-axial powerhouse for stage-monitor , high-power top or full-range pa/drum-fill application, intended for passive and two-way active loudspeaker configuration in general. Left and right version available as a standard. The specific and user-friendly directivity of C series monitor was equally designed for configuration as stage-monitor and FOH sound reinforcement system. As long as operated in stage-monitor mode, no feedback or dead spots will occur due to large vertical splay and 45 degree tilt of loudspeaker baffle. In stacked or flown configuration, possible lateral splay of 60/90 degrees ensures optimum directivity and sound coverage of designated area as required from professional sound engineer. The multiple reinforced and braced speaker cabinet construction is, like all KS-AUDIO systems, built from birch plywood treated with heavy-duty PU-coating. All RAL-colors available as a standard. Due to ergonomically built-in handles, single-or two-handed lifting of monitor is easily possible. A perforated steel front grille plus foam for heavy-duty protection of built-in transducers, 36mm top hat, four metrical M6 threads for u-bracket, twin NL4 connection plates for wiring thru and optionally lots of additional gear for further flexibility in use are available at your local KS-AUDIO dealership. The integration of handle, connection plate, top hat and active/passive switch into a single unit is featuring true innovation with an one-of-a-kind mechanical device in modern loudspeaker design.
Pasyvus monitorius CM 215

Techninė specifikacija:

frequency response + / -3dB
60 – 18,500Hz

output SPL
140dB peak

dispersion angle (horizontal x vertical in degrees)
60°/40° CD-Horn

system controller type
KS AUDIO amp CA 4D or TA 4D with D MOD or F MOD

drivers
15” cone + 2” compression driver

power in Wrms
700W +120W at 8 ohms

amplification / x-over
full range / 2 way bi-amp switchable

input connectors
speakon NL4

output connectors
speakon NL4

cabinet
birch plywood

grill
stainless steel honeycomb 6 sided + acoustic foam

finish
charcoal black / polyurethane

dimensions (height x width x depth)
400 x 670 x 510 mm

weight
32 kg

features
35mm pole mount 4 x M6 mounting points
