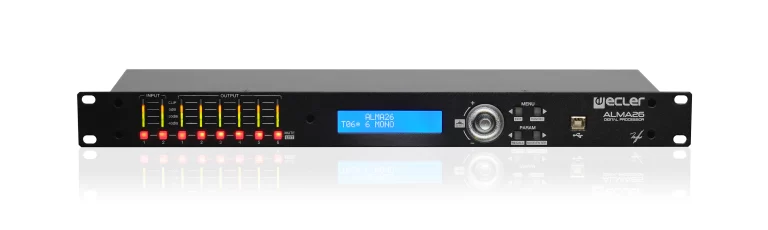

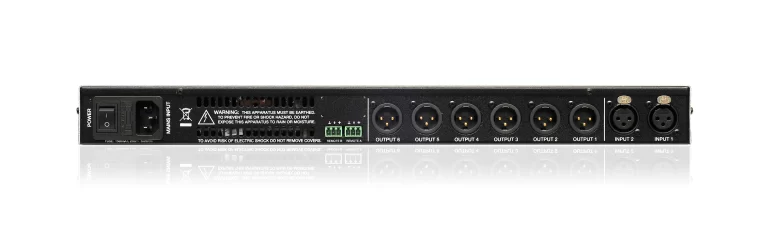

ALMA26 procesorius

Ecler
1038 €

Digital Loudspeaker Manager

ECLER ALMA26 is a digital loudspeaker manager including 2 audio inputs and 6 audio outputs, USB interface and 2 volume remote control ports (0-10VDC).

Key Features


  • 2 audio inputs x 6 audio outputs, all balanced
  • 24 bits / 48 kHz DSP processing
  • 2×20 characters front panel LCD display
  • 4 front panel configuration keys + digital encoder
  • USB interface and EclerCOMM Manager compatibility
  • DSP processing:
    – GAIN, MUTE, POLARITY, etc., per input or output
    – 4 parametric EQ filters per input / 8 parametric EQ filters per output
    – Butterworth, Linkwitz-Riley or Bessel Crossover filters at outputs (up to 48 dB / oct)
    – Inputs and outputs delay
    – Compressor / limiter at outputs, including make-up gain
    – 3 LINK groups (output channels link)
  • System templates to create user configurations
  • 20 user Presets
  • Labels’ edition (inputs, outputs, presets and device)
  • Password protection system with 2 security modes

Input section

Sensitivity
0dBV

Input impedance
>20k electronically balanced

CMRR
>55dB (20Hz ÷ 20kHz)

Input connector
XLR3 female

Output section

Nominal Output level
0dBV

Output impedance
300Ω electronically balanced

Output connector
XLR3 male

A/D & D/A
24bit / 48kHz

Frequency response
<10Hz ~ 20kHz

Output noise floor (FFT)
<-115dB (from 20Hz to 20kHz)

THD + Noise
< 0.0028% (1kHz, 1Vrms)

Crosstalk
>95dB, 30Hz ÷ 20kHz

Crossovers filters

Slopes
6, 12, 18, 24 or 48dB/octave (Filter type dependant)

Type
Linkwitz-Riley, Butterworth or Bessel

General

Mains
90÷264VAC 50/60Hz

Power consumption
25VA

Dimensions W x H x D
482.6 x 44 x 120mm

Weight
1.75kg
